Cooling System Components Overview







Engine Management Systems

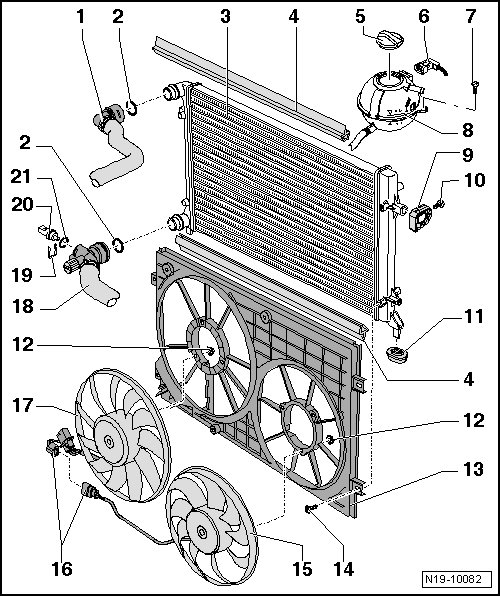

Cooling System Components Overview







6 - Engine Coolant Level (ECL) Sensor -G32-

15 - Coolant Fan 2 -V177-

17 - Coolant Fan -V7- and Coolant Fan Control (FC) Control Module -J293-
• The coolant fan control module is integrated in the coolant fan.

20 - Engine Coolant Temperature (ECT) Sensor (on Radiator) -G83-
• Engine Code BPY location => [ Engine Coolant Temperature (ECT) Sensor - Engine Code BPY 2.0L ] See Image Below.


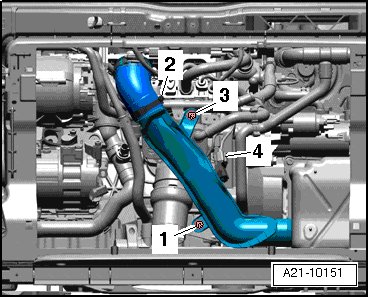

Engine Coolant Temperature (ECT)
Sensor - Engine Code BPY 2.0L






4 - Engine Coolant Temperature (ECT) Sensor -G83-

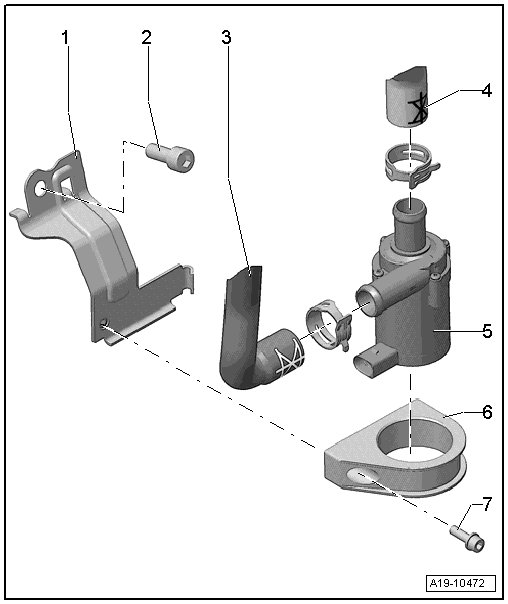

After-Run Coolant Pump






5 - After-Run Coolant Pump -V51-

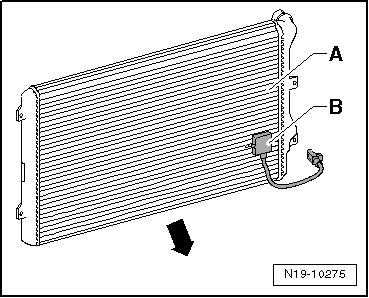

Radiator Identification Sensor






B - Radiator Identification Sensor -G611-
- 2.0L CBFA shown

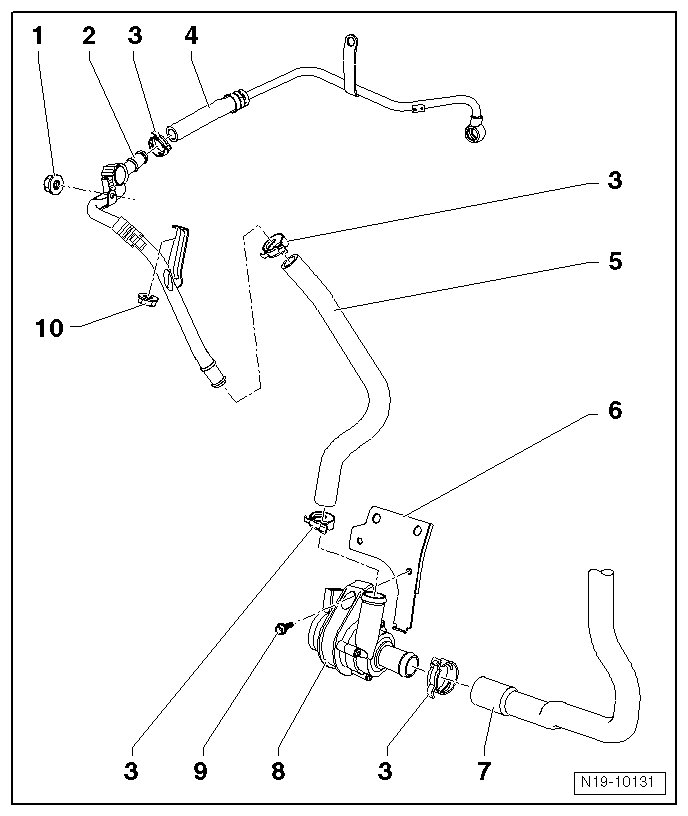

Auxiliary Coolant Pump Assembly Overview - Engine
Code BPY 2.0L






8 - Coolant Pump -V50-
