Pistons, Checking

Pistons, Checking

Special tools, testers and auxiliary items required
^ External micrometer 75 to 100 mm

- Take measurement approximately 10 mm from lower edge of piston skirt and offset 90° to piston axis.

Deviation from nominal dimension: max. 0.04 mm





Cylinder Bore, Checking

Special tools, testers and auxiliary items required
^ Internal dial gauge 50 to 100 mm

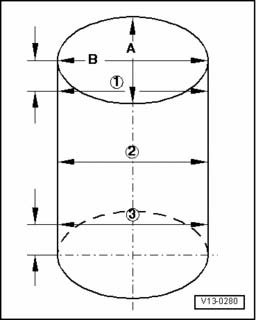

- Measure diagonally at 3 positions transversely - A - and longitudinally - B -.

Deviation from nominal size: max. 0.08 mm.

Note:
^ Cylinder bore must not be measured if cylinder block is secured to engine stand with holding fixture T03001, or else results may be incorrect.
