Center Reading Lamp
Roof Trim Lamps and SwitchesCenter Reading Lamp Removing -
Remove interior light. Refer to=> [ Interior Lamp ].
Interior Lamp -

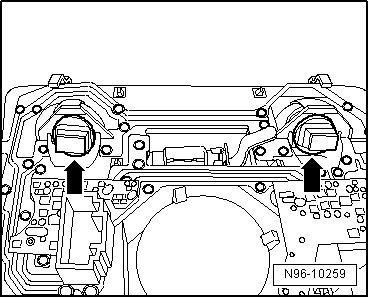

Rotate lamp socket -
arrows - of malfunctioning reading light 90° toward left.
-
Remove socket with light bulb out of reading light.
-
Carefully remove glass socket lamp out of socket.
-
Replace bulb (12V, 5 W).
Installing Install in reverse order of removal.
