Combination Switch: Locations

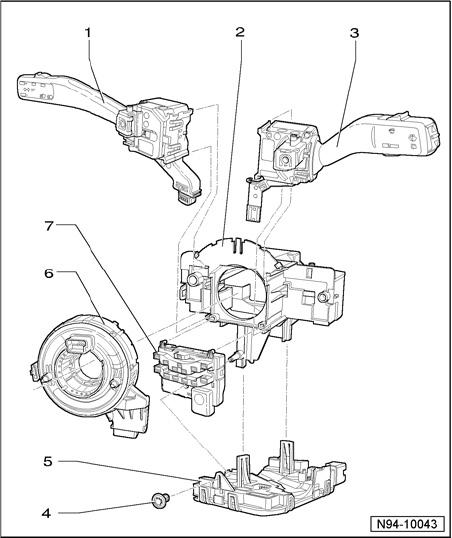

Steering Column Switch - Assembly Overview







1. Turn Signal Switch
- "Turn signal switch" consists of the components Turn Signal switch E2, Headlamp Dimmer/Flasher Switch E4 and depending on equipment (CCS) with Cruise Control Switch E45
- In the illustration, the "turn signal switch" is depicted without Cruise Control Switch E45
2. Base carrier for steering column switches
3. Windshield Wiper Switch E
4. Bolt
5. Steering Column Electronic Systems Control Module J527
- Coding
- Output Diagnostic Test Mode (DTM)
6. Airbag Spiral Spring/Return Spring With Slip Ring F138
7. Steering Angle Sensor G85
- Basic setting
