Steering Angle Sensor
Steering Column SwitchSteering Angle Sensor CAUTION! The removal and installation of individual steering column switch components must be done in the specified sequence. Refer to=> [ Steering Column Switch ] Initial Inspection and Diagnostic Overview. Removing -
Remove

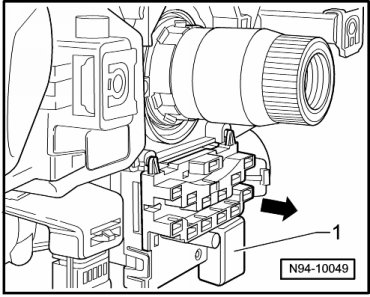

Steering Angle Sensor (G85) -
1 - toward rear from steering column switches -
arrow -.
Installing Install in reverse order of removal.
