Fluid Filter - A/T: Service and Repair

Transmission Fluid Filter

Removing

- Remove the oil pan. Refer to => [ Oil Pan ] Service and Repair.

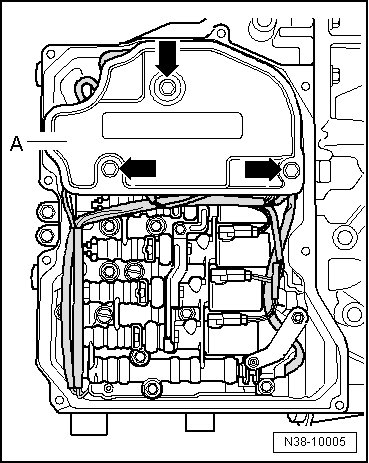

- Remove the oil filter bolts - arrows -.





- Remove the oil filter - A - from the valve body.

Installing

- Lightly lubricate the seals on the suction collar of the oil filter with Automatic Transmission Fluid (ATF).

- If the seals are loose or damaged, the oil filter must be replaced.

- Install the oil filter - A - and tighten; tightening specification, refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.





- Install the oil pan. Refer to => [ Oil Pan ] Service and Repair.

- Add ATF, check the ATF level and top off. Refer to => [ ATF Level, Checking and Filling ] Testing and Inspection.
