Idle Speed: Specifications

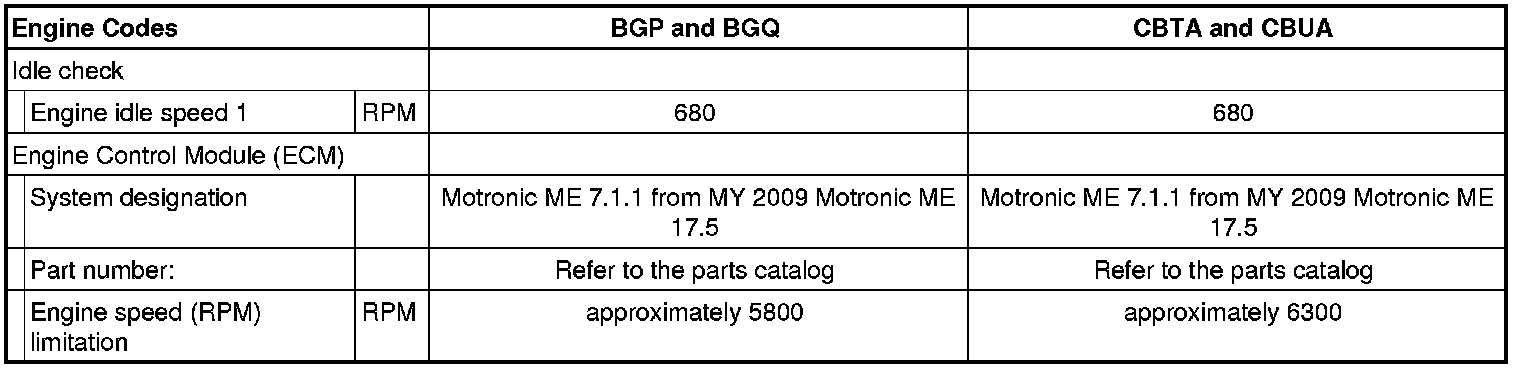

Technical Data





• 1 Applies to manual and automatic transmission. If the voltage supply for the Engine Control Module (ECM) drops below 12 volts, the idle speed gradually increases up to 780 RPM. Idle speed is not adjustable.
