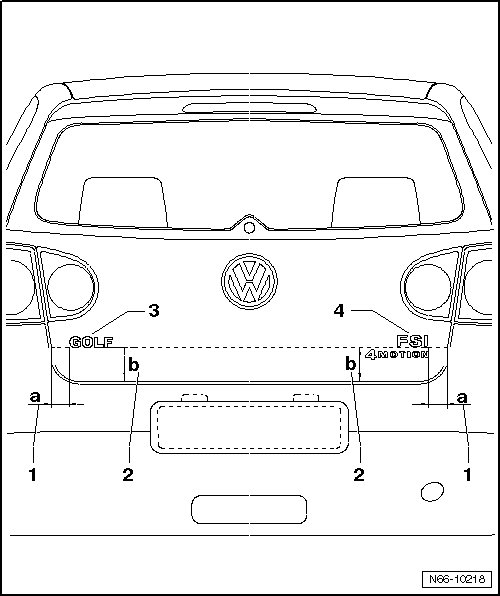

Rear Name Plate Dimensions
Rear Name Plate Dimensions 1 Dimension - a - = 50 mm
•
From outer edge of rear lid up to name plate.
2 Dimension - b - = 90 mm
•
From lower edge of rear lid to lower edge of name plate.
3 Name plate •
Model designation
4 Name plate •
Engine designation
