Restraints - Air Bag Color Code ID And Coding

69 08 04

Aug. 18, 2008

2011170, Supersedes Technical Bulletin Group 69 number 08-01 dated Jan. 7, 2008 due to additional model years and color codes.

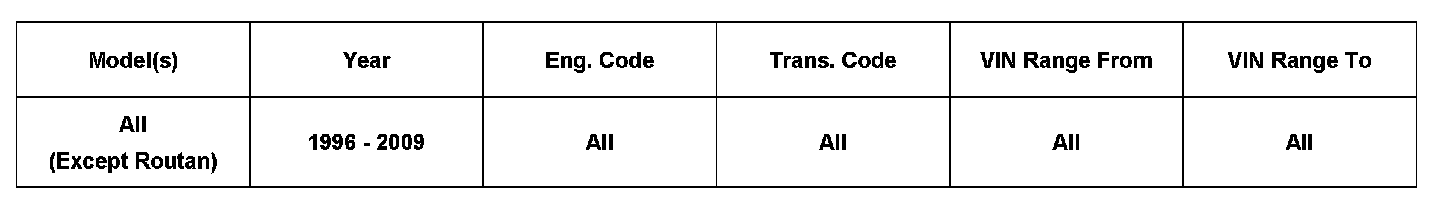

Vehicle Information

Condition

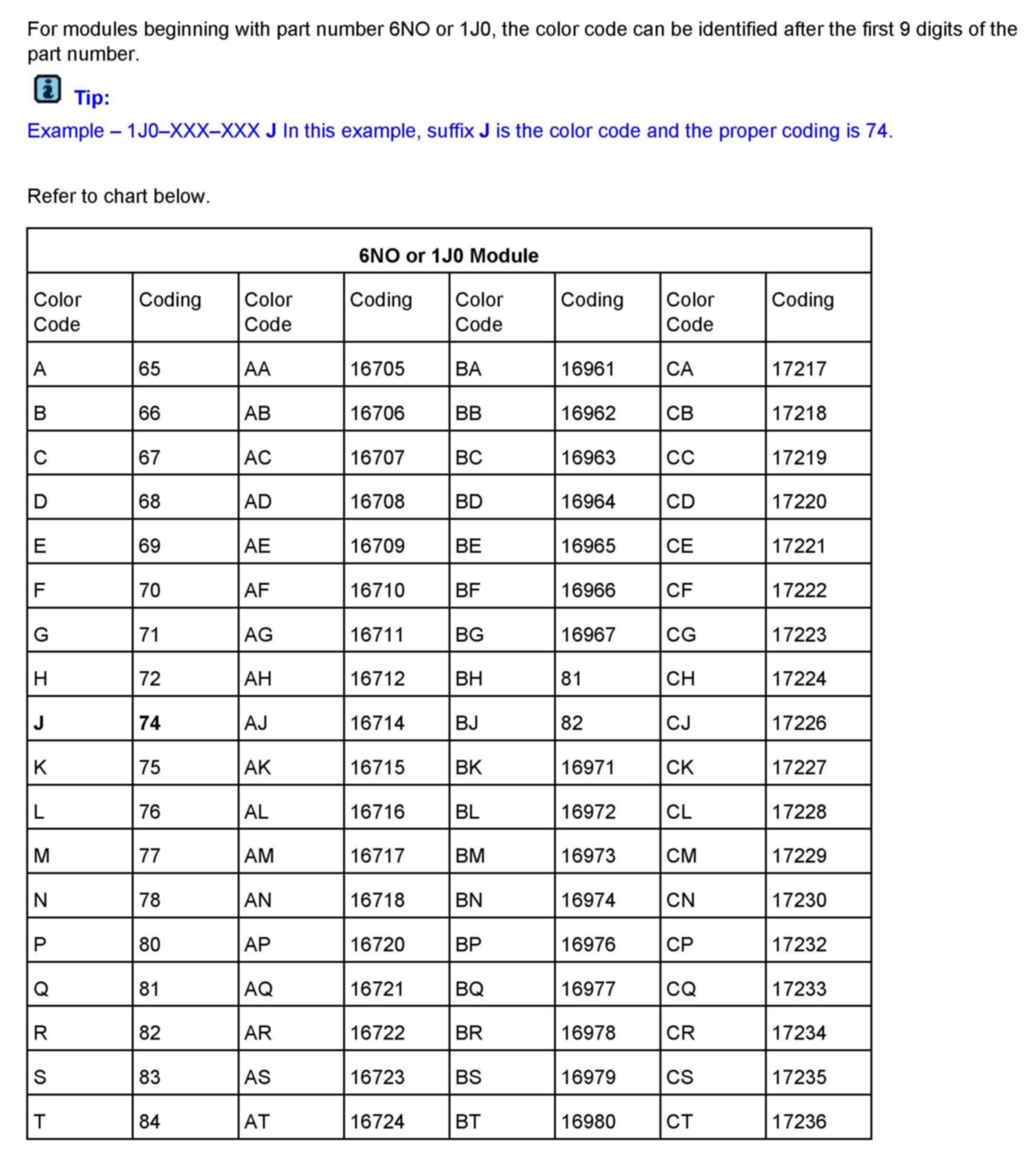

Module, Airbag, Color Code Identification and Coding

Prior to replacing Airbag System components, it is important to properly identify the airbag module color code.

Technical Background

Not applicable.

Production Solution

Not applicable.























Service

Warranty

Information only.

Required Parts and Tools

No Special Parts required.

No Special Tools required.

Additional Information

All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
