Fluid Line/Hose: Locations

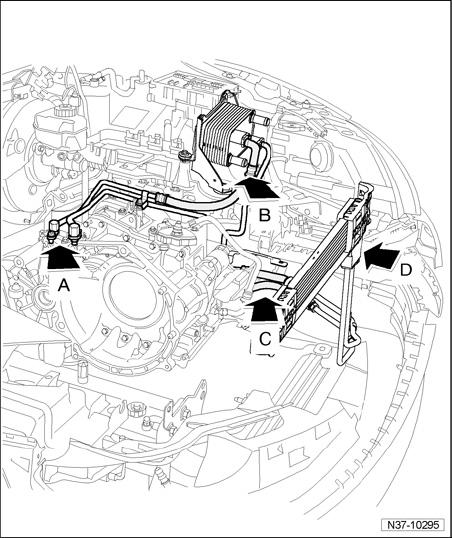

Overview 09G, 6 Speed A/T

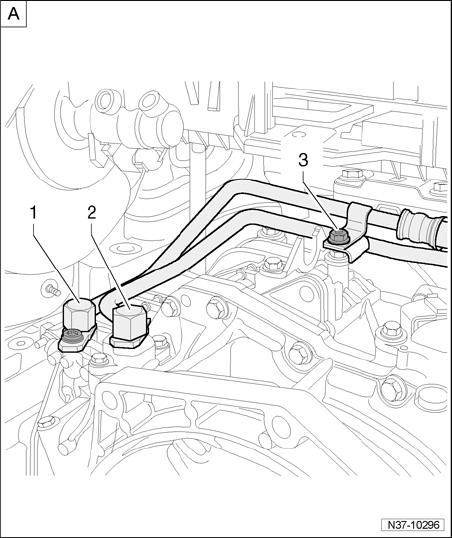

A - ATF lines on transmission
B - External ATF cooler

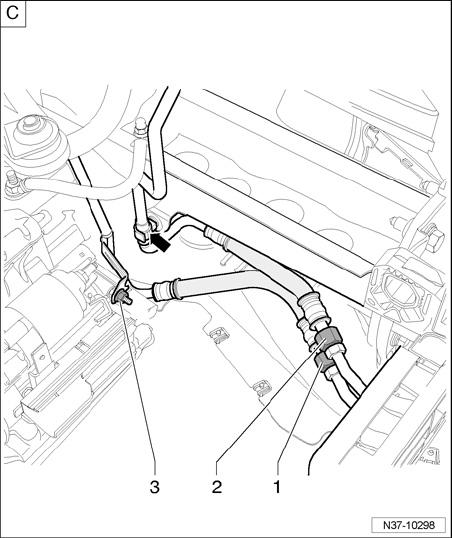

C - ATF lines
D - Auxiliary ATF cooler

Transmission ATF lines





1 - ATF line
^ Always replace O-ring
^ 20 Nm
2 - ATF line
^ Always replace O-ring
^ 20 Nm
3 - Nut
^ 9 Nm

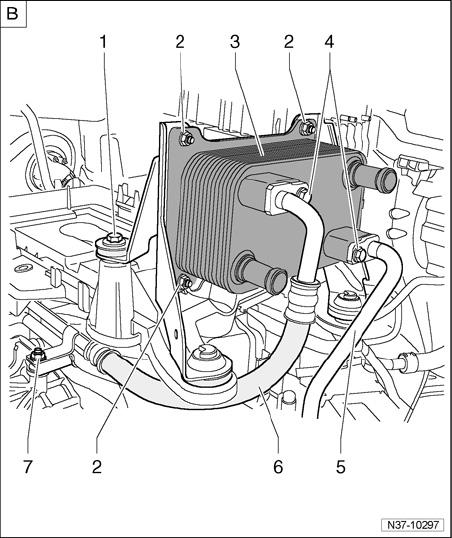

External ATF cooler





1 - Bolt
^ 8 Nm
2 - Nut
^ 9 Nm
3 - External ATF cooler
4 - Bolt
^ 9 Nm
5 - ATF line
^ Supply line
^ Always replace O-ring
6 - ATF line
^ Return line
^ Always replace O-ring
7 - Nut
^ 9 Nm

ATF lines





1 - ATF line
^ Return from auxiliary cooler
^ 25 Nm
2 - ATF line
^ Supply to auxiliary cooler
^ 25 Nm
3 - Nut
^ 9 Nm

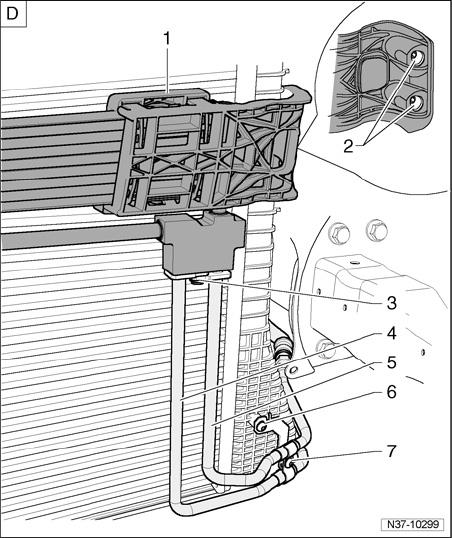

Auxiliary ATF cooler





1 - Auxiliary ATF cooler
2 - Bolt
^ 5 Nm
3 - Bolt
^ 9 Nm
4 - ATF line
^ Return line
^ Always replace O-ring
5 - ATF line
^ Supply line
^ Always replace O-ring
6 - Bolt
^ 5 Nm
7 - Bolt
^ 9 Nm
