Fluid Pressure Sensor/Switch: Locations
Automatic Transmission Hydraulic Pressure Sensor 1 G193 and Automatic Transmission Hydraulic Pressure Sensor 2 G194 09G, 6 Speed A/T This sensor is not installed in all transmissions.

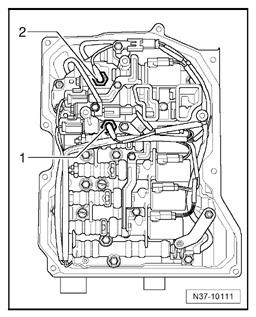

Location: For transmissions with these sensors, they are located in the valve body.
1 -
Automatic Transmission Hydraulic Pressure Sensor 1 G193
2 -
Automatic Transmission Hydraulic Pressure Sensor 2 G194
