Passenger Door Window Regulator Switch






Door Lamps and Switches

Passenger Door Window Regulator Switch

• Push Button Illumination (L76), which cannot be replaced separately, is integrated in Window Regulator Switch (in RF door) (E107).

Removing

- Turn off the ignition and all electrical consumers.

- Remove upper part of grip shell from pull handle

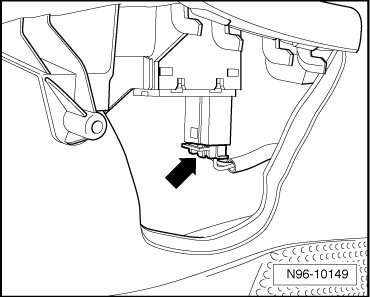

- Disconnect electrical connection - arrow -.

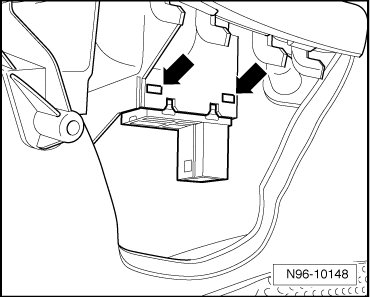

- Disengage retaining tabs - arrows - and remove switch from installation frame.





Installing

Install in reverse order of removal.
