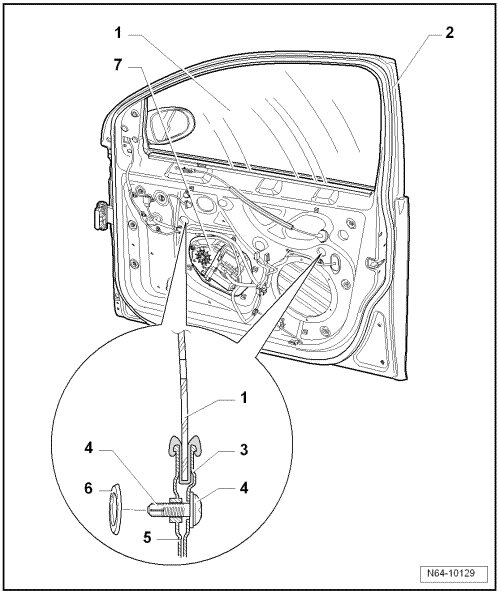

Front Door Window Assembly Overview

Front Door Window Assembly Overview

• The description applies to the right side. The left side is similar

• Bolt - 4 - is accessible from inside and outside. The bolt as viewed from the outside has a right-hand thread. This means: seen from the outside, bolt is loosened by turning toward left, seen from the inside, bolt is loosened by turning toward right.





1 Door window

• Removing and Installing => [ Front Door Window ] Front Door Window

2 Window guide

• Removing and Installing => [ Front Door Window Guide ] Front Door Window Guide

3 Mount

4 Bolt

• Accessible from outside (right-hand threads), loosen by turning left, remove outer door plate => [ Outer Door Panel ]

• Accessible from inside, loosen by turning right, remove trim from door

• Qty. 2

• 8 Nm

5 Window regulator

• Removing and Installing => [ Front Door Window Regulator ] Front Door Window Regulator

6 Cap

• Qty. 2

7 Window regulator motor

• Removing and Installing => [ Front Door Window Regulator Motor ] Front Door Window Regulator Motor
