Rear Window Washer System

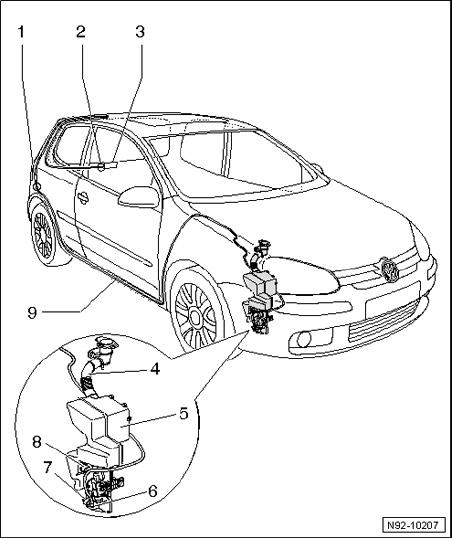

Rear Window Washer System, Assembly Overview







1. Connecting piece
- Interior wiring harness separating point at rear lid wiring harness
- Washer hose couplings, overview
2. Connecting piece
- Connection at washer nozzle for rear window washer system
- Washer hose couplings, overview
3. Rear window washer system spray nozzle
- Washer nozzles, replacing
- Adjusting wash
4. Filler tube for tank for windshield washer system and headlamp cleaning system
5. Washer fluid reservoir (vehicles without auxiliary heater) (vehicles with auxiliary heater)
6. Angle coupling
- Connection to Windshield and Rear Window Washer Pump V59
- Washer hose couplings, overview
7. Windshield and Rear Window Washer Pump V59
8. Windshield Washer Fluid Level Sensor G33
9. Hose
- Hose repair
