Wiper Motor Linkage: Service and Repair

Wiper Frame with Linkage and Wiper Motor

Removing

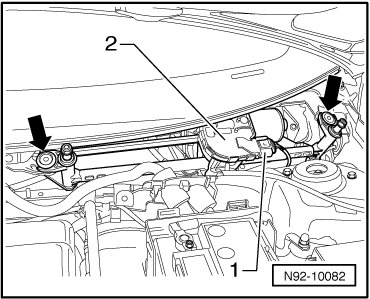

- Disconnect electrical connection - 1 -.

- Remove mounting bolts - arrows - and swing wiper motor and frame- 2 - upward and out of vehicle.
