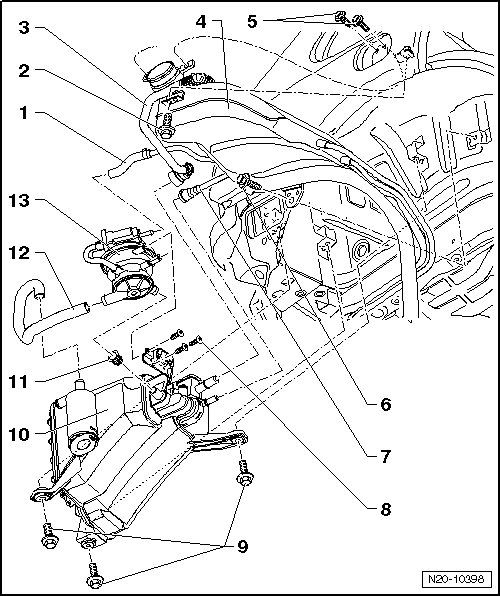

EVAP System Assembly Overview

EVAP System Assembly Overview





1 Vacuum line

• For Leak Detection Pump (LDP) (V144) vacuum supply.

• To vacuum connection at intake manifold.

• Ensure seated tightly.

2 Bolt, 9 Nm

3 Vent line

• From fuel tank.

• Ensure seated tightly.

4 Fuel filler tube

• With expansion tank.

5 Bolt, 5 Nm

6 Bolt, 9 Nm

7 Vent line

• To Evaporative Emission (EVAP) canister purge regulator valve (N80).

• Ensure seated tightly.

8 Bolt, 5 Nm

9 Bolt, 9 Nm

10 EVAP canister

• Component location: in right rear wheel housing.

11 Rubber bushing

• Note installation position.

• Replace if damaged.

12 Connecting hose

• Between air filter and Leak Detection Pump (LDP) (V144)

• Ensure seated tightly.

13 Leak Detection Pump (LDP) (V144)

• Checking fuel supply system for leaks, refer to --> [ Fuel/EVAP System, Checking for Leaks ].

• Black connector, 3 pin.
