Heating and Ventilation Controls Multi-Pin Connector Assignments

Heating And Ventilation Controls Multi-Pin Connector Assignments

Special tools, testers and auxiliary items required
- Connector test set VAG 1594 C

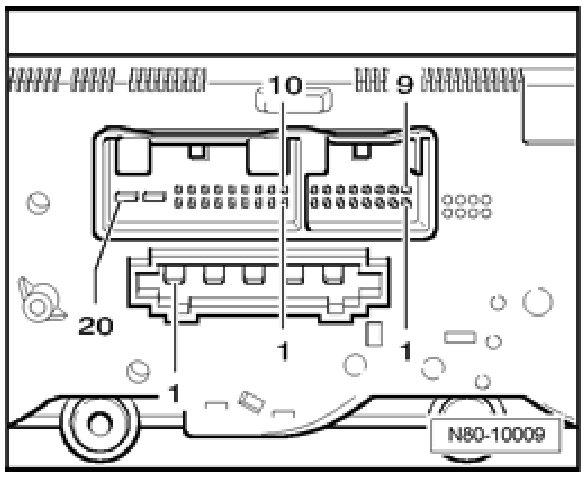

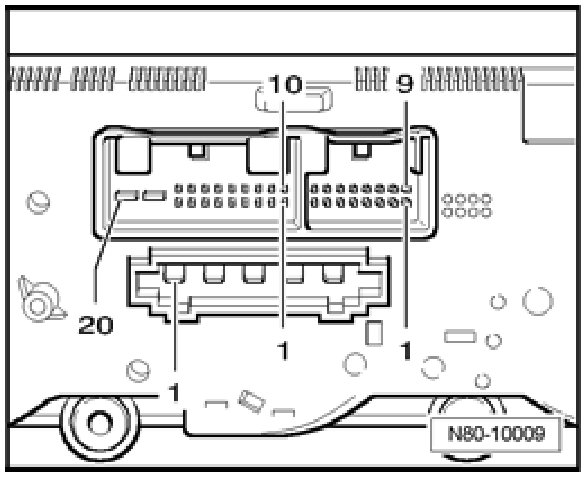

16-pin electrical connection is not assigned.







5-pin electrical connection -T5-
1 - 3rd blower speed
2 - 2nd blower speed
3 - 1st blower speed
4 - 4th blower speed
5 - Terminal X







20-pin electrical connection -T20c-
3 - Fresh/Recirculating Air Door Motor V154
6 - Fresh/Recirculating Air Door Motor V154
7 - Auxiliary Air Heater Control Module J604
8 - Rear window
11 - Drivers Heated Seat Control Module J131
15 - Front Passengers Heated Seat Control Module J132
16 - Terminal 75 seat heater (optional)
18 - Terminal 30
19 - Terminal 15
20 - Ground (GND) - Terminal 31
