Powertrain Management: Locations

Powertrain Management: Locations

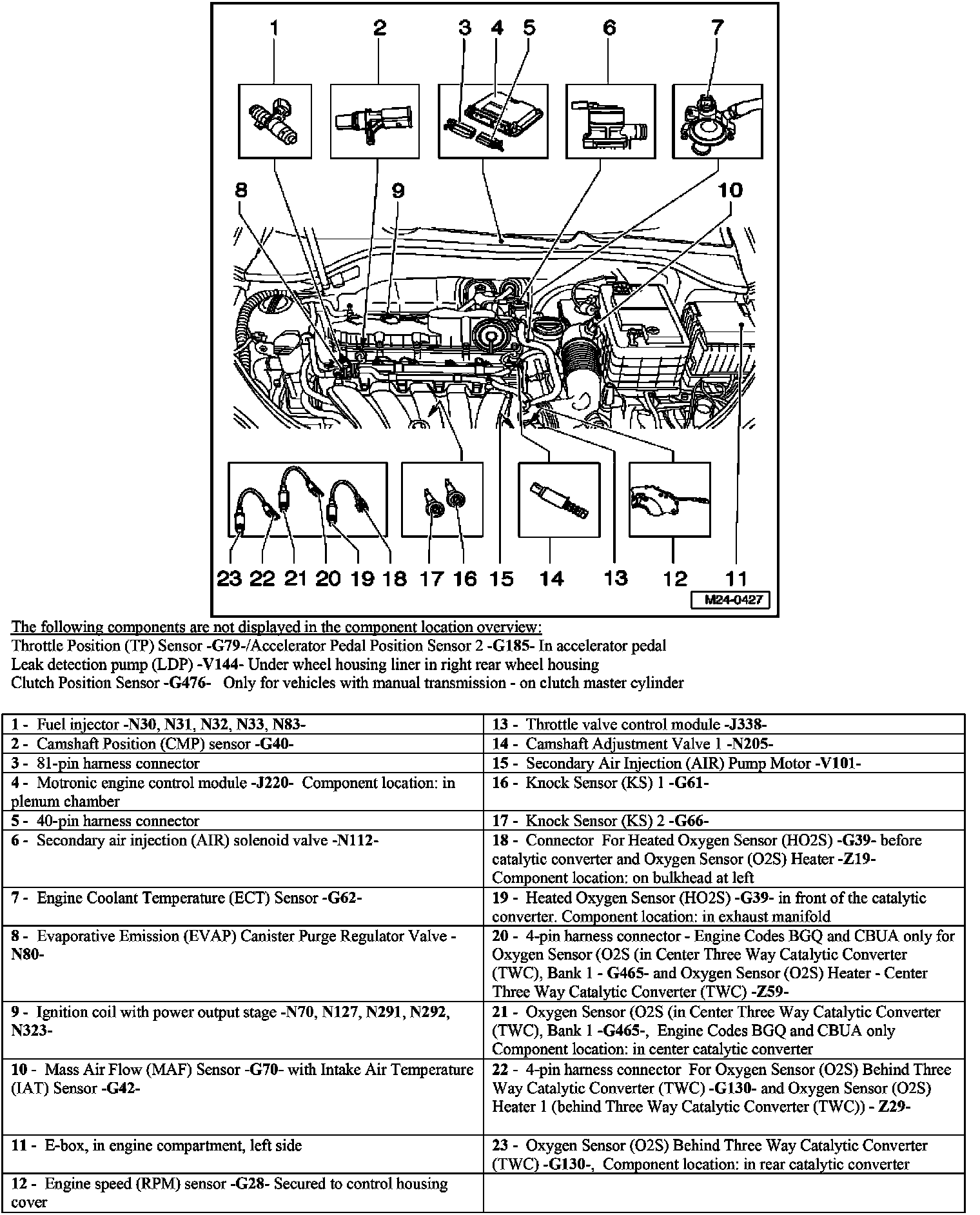

Component Locations Overview:

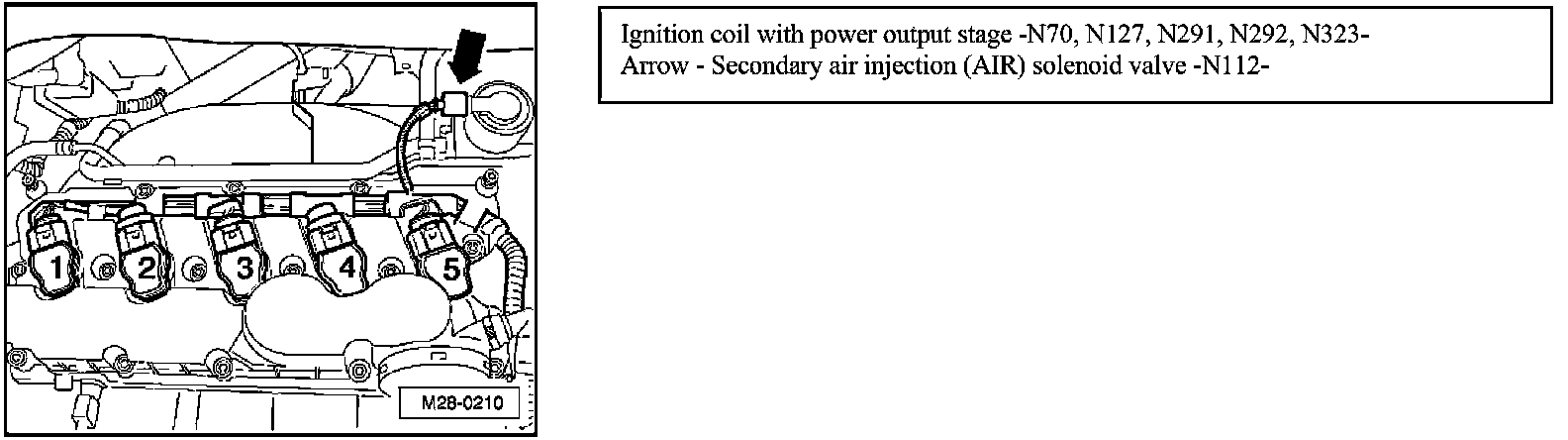

Ignition Coil With Power Output Stage - N70, N127, N291, N292, N323, Secondary Air Injection (AIR) Solenoid Valve -N112:

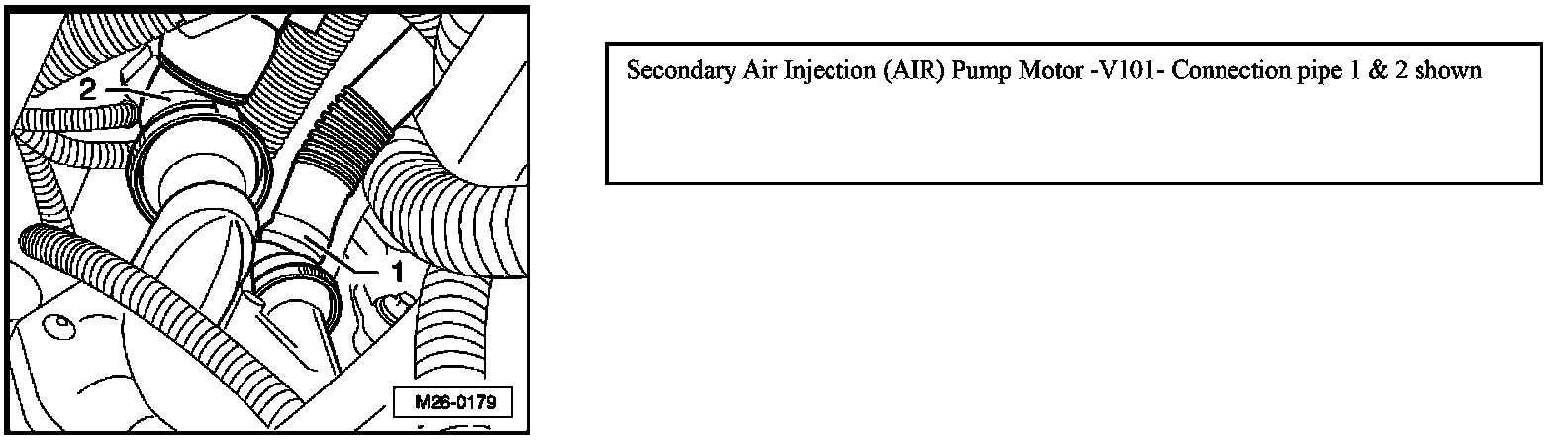

Secondary Air Injection (AIR) Pump Motor -V101- Connection Pipe 1&2 Shown:

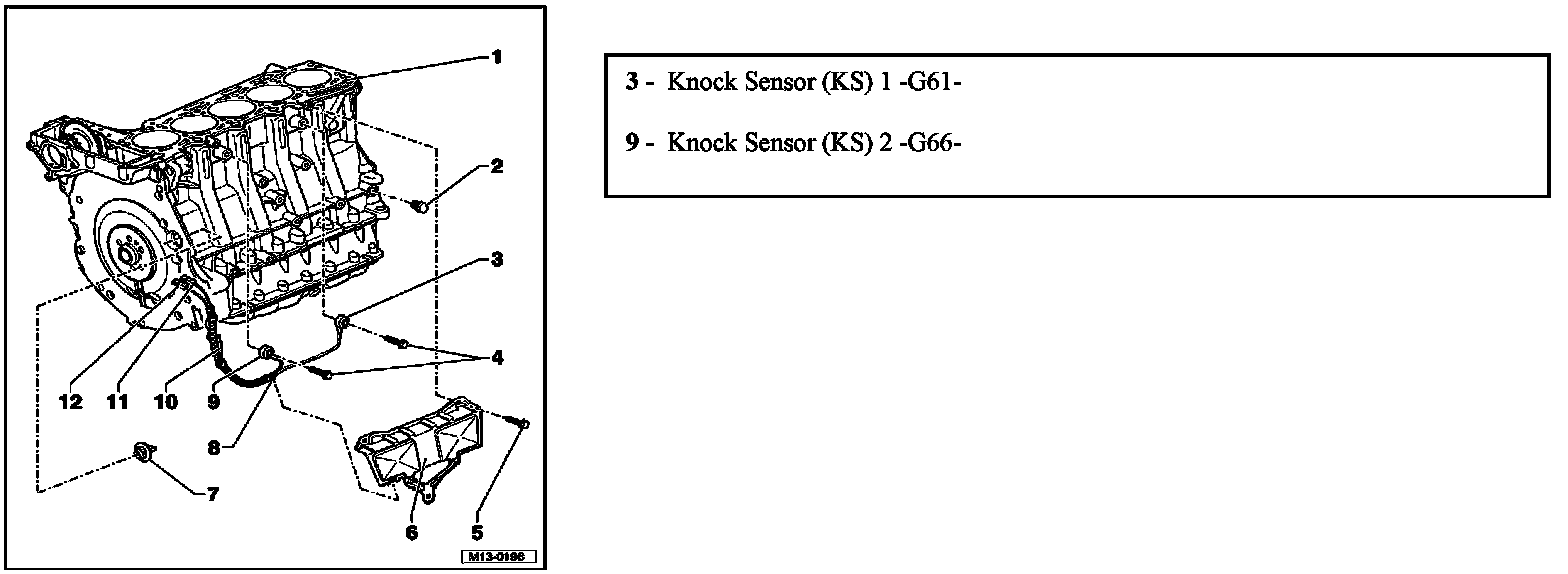

3 - Knock Sensor (KS) 1 -G61-, 9 - Knock Sensor (KS) 1 -G66-:

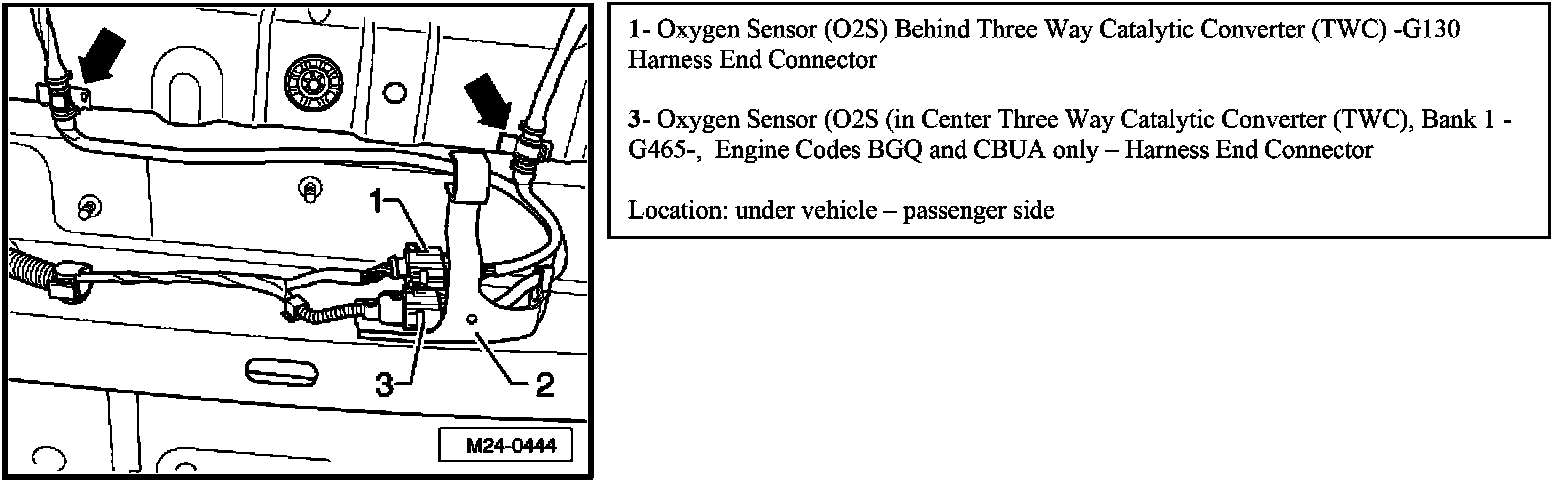

Oxygen Sensor (O2S) Behind TWC Converter -G130-, Oxygen Sensor (O2S) In Center TWC Converter, Bank 1 -G465-:
