Windshield Washer System Assembly Overview

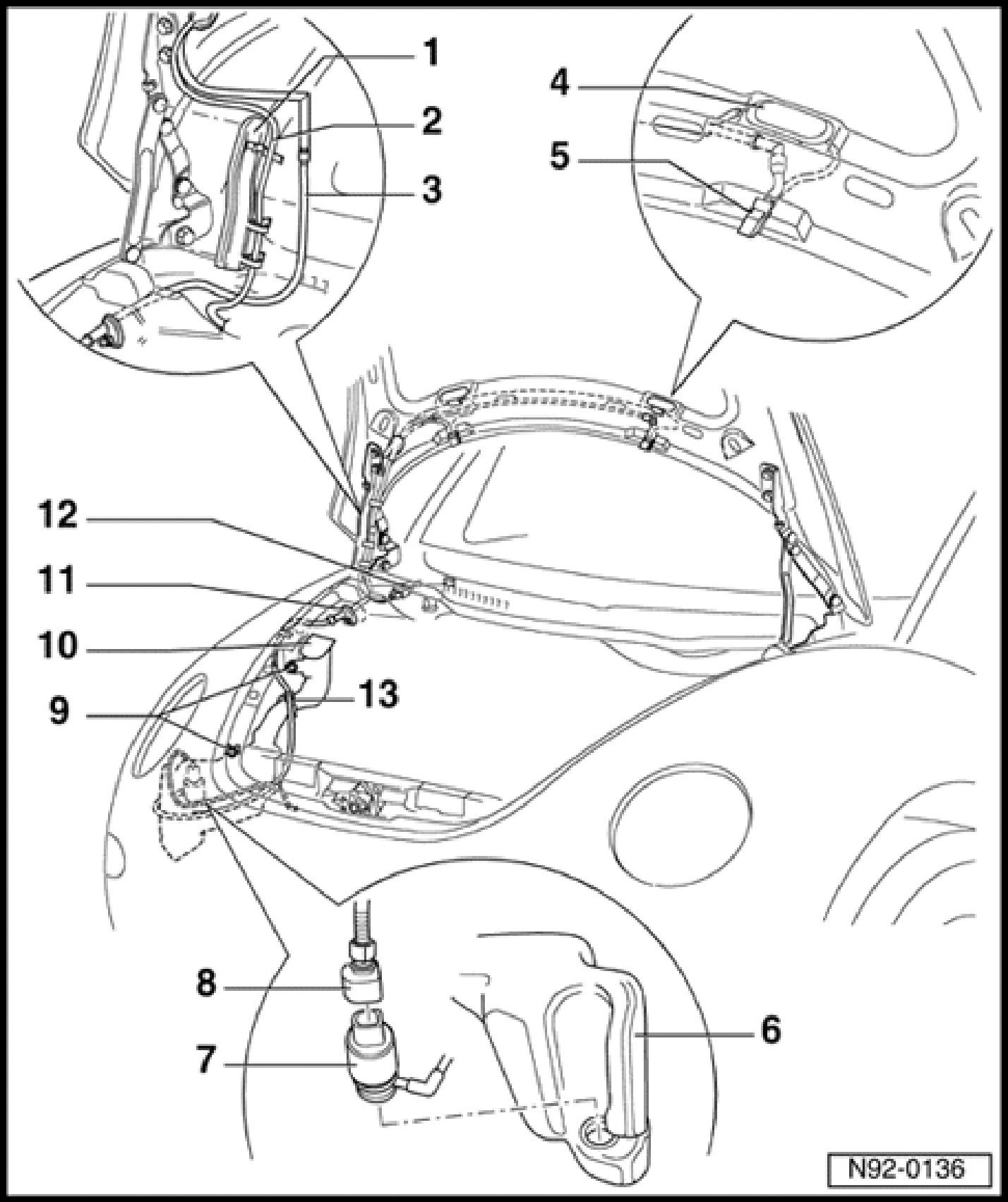

Windshield Washer System Assembly Overview







1 - Securing clip
2 - Wiring harness for heated washer jets
3 - Hose
4 - Cover cap
- With connectors for heated washer nozzles
5 - Washer jets
6 - Windshield washer system reservoir
- Removing Remove right front inner fender lining
7 - Windshield washer system pump
- Pull pump upward off rubber grommet
8 - Harness connector
9 - Securing Nuts
- 5 Nm
10 - Container cap
11 - Transfer piece
12 - Harness connector for heated washer nozzles
13 - Hose clip
