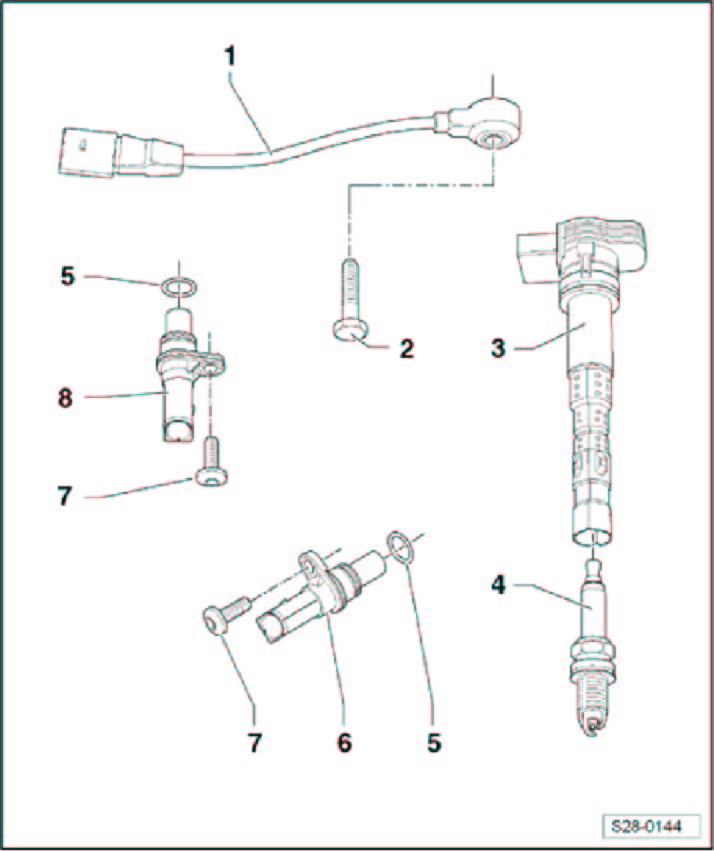

Ignition Assembly Overview

Ignition Assembly Overview







1 - Knock Sensor
- On front cylinder head under the intake manifold
- To remove, coolant pump must be removed.
- Contacts gold plated
2 - 20 Nm
- Tightening specifications affects function of Knock Sensor (KS).
3 - Ignition Coil with Power Output Stage
4 - Spark plug
- Type and electrode gap.
- Remove and install with spark plug removal tool 3122 B
- Tightening Specification: 25 Nm
5 - O-ring
- Replace
6 - Engine Speed Sensor
- In front, lower, left in the cylinder block, next to the oil separator
7 - 10 Nm
8 - Camshaft Position Sensor
- In front cylinder head cover
- Contacts gold plated
