Generator Assembly Overview

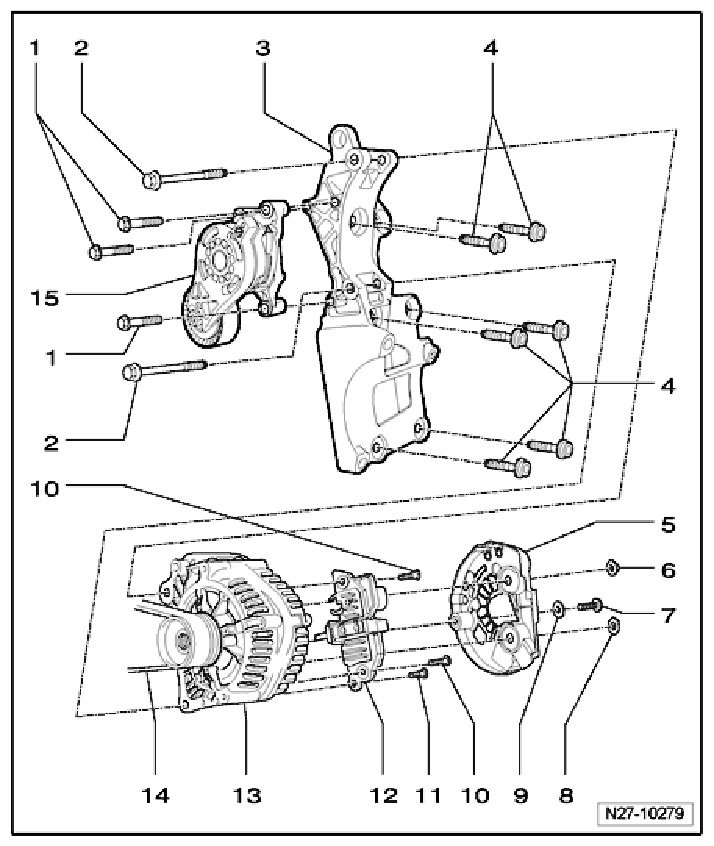

Generator Assembly Overview (BPY, CBFA, CCTA)

CAUTION: When disconnecting and connecting battery, the procedure must be followed as described.

NOTE: Test the generator.







1 - Collar bolts
- M8x45
- 23 Nm
2 - Collar bolts
- M8x90
- 23 Nm
3 - Bracket
- For generator and A/C compressor
- Tightening sequence.
4 - Collar bolts
- M10x45
- 45 Nm
5 - Protective cap
6 - Hex head collar nut
- M8
7 - Phillips head screw
- M5x21
- 4.5 Nm
8 - Flat hex nut
- M8
9 - Washer
- M5
10 - Phillips head screws
- M4x19
- 2 Nm
11 - Phillips head screw M4x13
- 2 Nm
12 - Voltage regulator
- Removing and installing voltage regulator
13 - Generator
- Generator, removing and installing.
14 - Ribbed belt
15 - Tensioner for ribbed belt
