Power Steering Control Module -J500-






Control modules in engine compartment

Power Steering Control Module -J500-




Component Location:

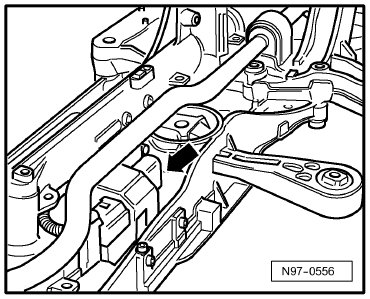

At steering on subframe, center -Arrow-


Pin Arrangements:







A - Power Steering Control Module -J500-
Connector:

B - 5-Pin Connector -T5s-
• Applicable through April 2008

C - 5-Pin Connector -T5z-

D - Double Connector -T2fn-

E - 3-Pin Connector -T3dt-
• Applicable from May 2008
