Front MAP/Reading Lamp Bulb

Front Map/Reading Lamp Bulb

NOTE: Bulb replacement procedure is the same for both reading lamps.

Removing:
- Switch off ignition and all electrical components and move ignition key or start button into position 0 (preliminary engaged position).
- Remove front interior lamp.

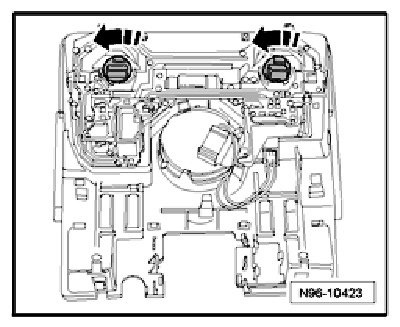

- Turn lamp socket in direction of - arrow - and remove.

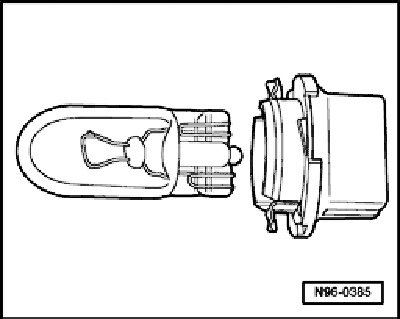

- Carefully remove bulb from socket.
- Replace bulb (12 V, 5 W).

Installing:
Install in reverse order of removal.
