Fuel Pump, Checking



Fuel Pump, Checking

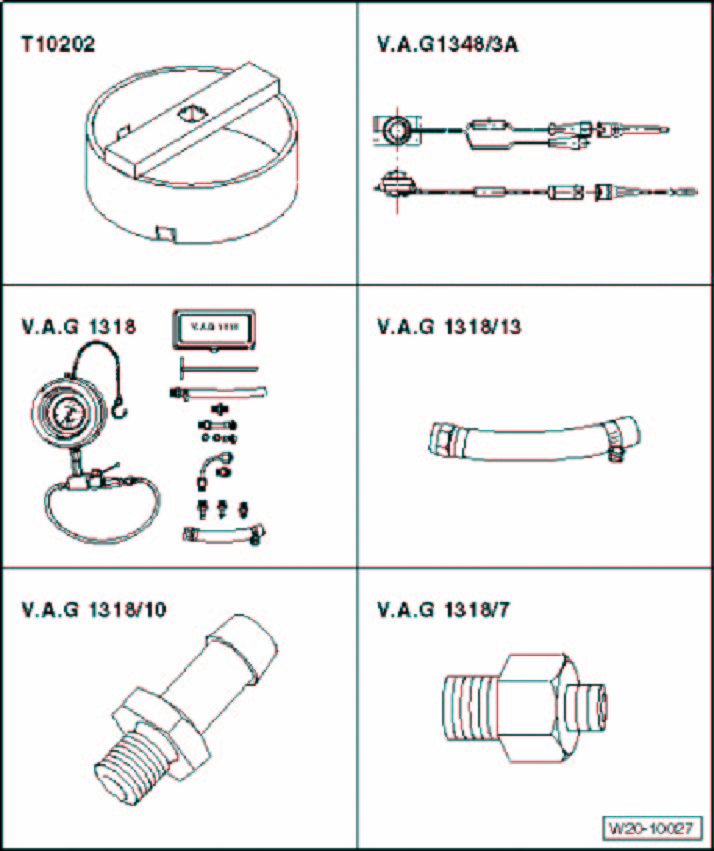

Special tools, testers and auxiliary items required
- Wrench lock ring removal
- Remote control connection
- Pressure gauge
- Hose
- Pressure gauge adapter
- Adapter
- Multimeter

Special tools, testers and auxiliary items required

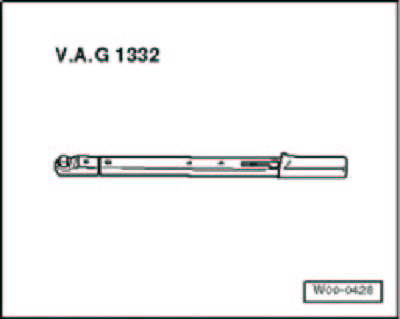

- Torque wrench

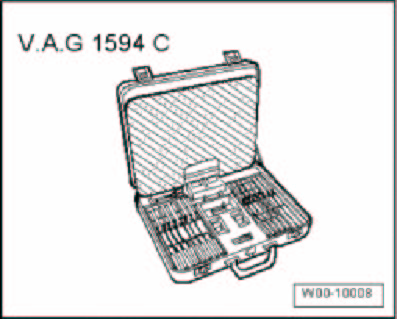

- Connector test set
- Voltage tester
- Measuring container
- Wiring diagram
