Navigation Antenna Module (Sedan)
Navigation Antenna Module Removing: -
Remove rear headliner connector trim at rear window.
-
Release and disconnect electrical connection -
2 -.
-

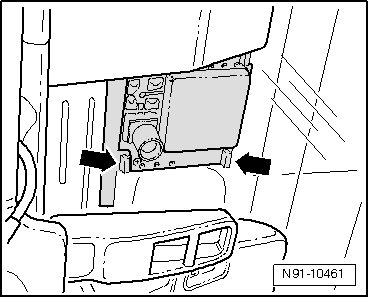

Release retaining clips -
arrows - on both sides.
-
Carefully remove antenna module.
Installing: Install in reverse order of removal.
