Radio Reception Antenna Module (Sedan)

Radio Reception Antenna Module

Removing:

- Remove rear headliner connector trim at rear window.

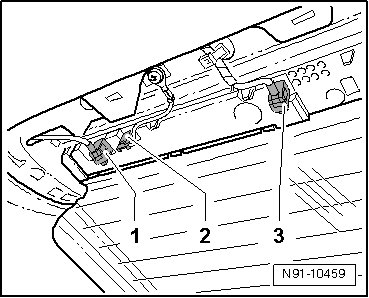

- Disengage connectors - 1, 2 and 3 - and remove them.

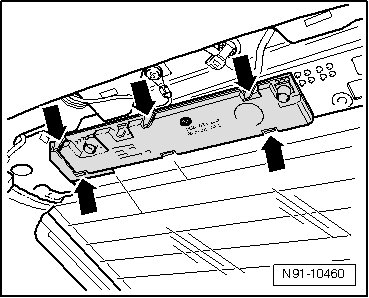

- Release retaining clips - arrows - on both sides.





- Carefully remove antenna module.

Installing:

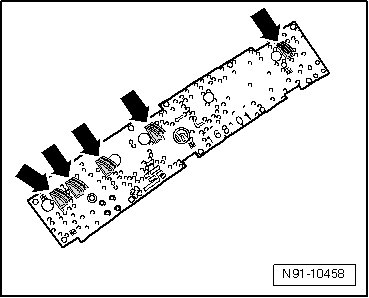

• Terminals on antenna module - arrows - must not be bent and must be metallically clean so that reception problems do not result.





• The same applies to contact surfaces on rear window.

Install in reverse order of removal.
