Generator Bracket With A/C System

Generator Bracket With A/C System (BLV)

CAUTION: Always follow tightening sequence of bracket in order to prevent damage to cylinder block and bracket.

Generator Bracket with A/C System:

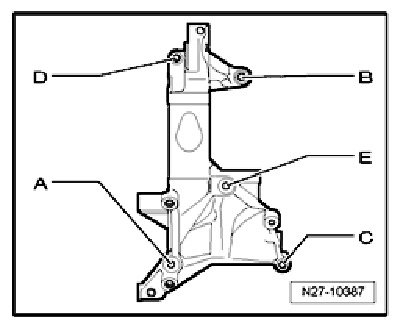

Tightening sequence of bracket to cylinder block

Procedure
- Place bracket onto cylinder block.

NOTE: Insert all bolts before tightening to the specified tightening torques.

- Tighten mounting bolts for bracket in the following sequence:
A - Socket head fitting bolt, M8x28, 23 Nm, alignment bore
B - Socket head fitting bolt, M8x28, 23 Nm, alignment bore
C - Multipoint socket bolt, M8x50, 23 Nm
D - Multipoint socket bolt, M8x50, 23 Nm
E - Multipoint socket bolt, M8x50, 23 Nm
