Rear Window Assembly Overview

Flush Bonded Windows

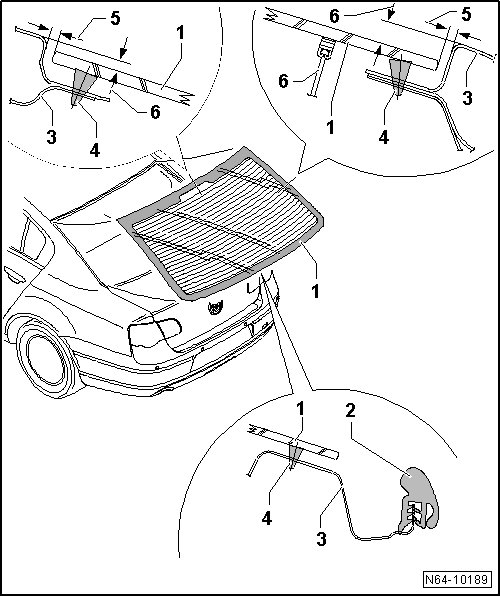

Rear Window Assembly Overview





1 Rear window

• Rear Window, Removing, refer to => [ Undamaged Rear Window ] Flush Bonded Windows

• Rear Window, Installing, refer to => [ Rear Window ] Flush Bonded Windows

2 Seal

• For the rear lid

3 Body flange

4 PUR Adhesive Sealant

• Bead diameter: width = 6.5 mm, height = 10 mm (including pre-coating, residual material on window glass and window flange)

• Minimum curing time, refer to => [ Minimum Curing Time ] Minimum Curing Time

5 Gap Dimension

• Set a constant dimension at top and sides of 2.5 mm using (3371)

6 Height Dimension at Top and Sides

• Top, from top surface of window to upper edge of roof

• Top: set a constant dimension of 3 mm using (3371)

• Side, from window edge to upper edge of side panel

• Side: set a constant dimension of 6.5 mm using (3371)

7 Contact for Window Heater
