Stabilizer Bar and Coupling Rod Assembly Overview

R32 Components, All Wheel Drive, Steel Subframe

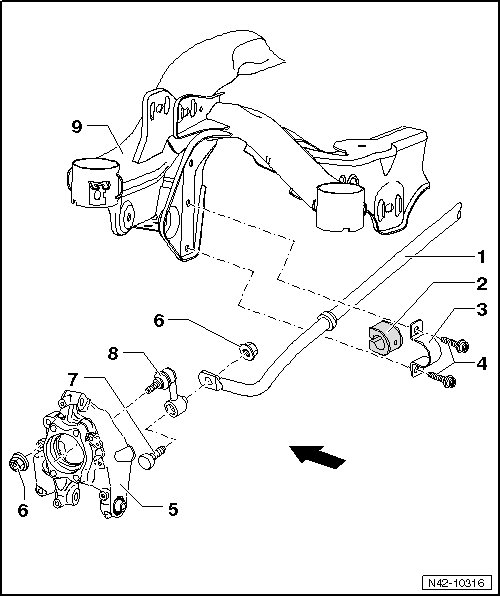

Stabilizer Bar and Coupling Rod Assembly Overview

The - arrow - points in driving direction.





1 Stabilizer

• Note different suspension versions, refer to => [ Vehicle Data Label ] Description and Operation.

• Removing and installing, refer to => [ Stabilizer Bar ] R32 Components, All Wheel Drive, Steel Subframe

2 Rubber Mount

• Replace mounts always on both sides of vehicle

3 Clamp

4 Socket Head Bolt

• Always replace after removal

• 25 Nm plus an additional 45° turn

• M8 x 28

5 Wheel Bearing Housing

6 Nut

• Always replace after removal

• 45 Nm

• M10 x 55

• Self-locking

7 Socket Head Bolt

• Always replace after removal

8 Coupling Rod

• Connects stabilizer to trailing link/wheel bearing housing

9 Subframe
