All Wheel Drive Control Module Assembly Overview

All Wheel Drive Control Module Assembly Overview

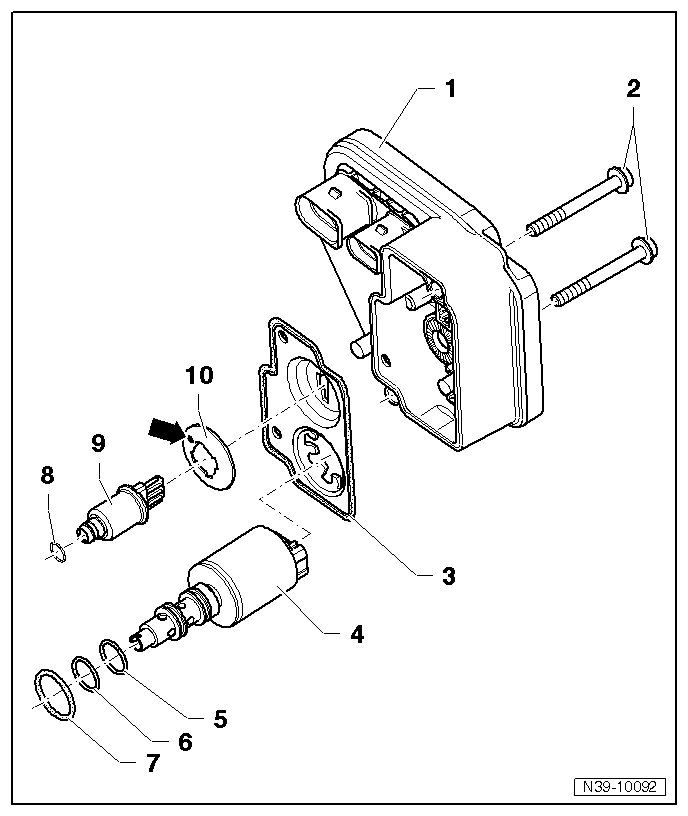

1 All-wheel drive control module (J492)

• Is calibrated with Haldex clutch control valve ( N373) => [ (Item 4) ]

• Always replace together with valve => [ (Item 4) ]

• Removing => [ All Wheel Drive Control Module ] All Wheel Drive Control Module.

2 Bolt

• 6 Nm

3 Cover

• With vulcanized gasket

• Always replace

4 Haldex clutch control valve (N373)

• Is calibrated with all-wheel drive control module (J492)

• Always replace together with control module => [ (Item 1) ]

5 Seal

• Diameter 12 mm

• For Haldex clutch control valve (N373)

• Coat with high performance Haldex clutch oil and insert

• Always replace

6 Seal

• Diameter 11 mm

• For Haldex clutch control valve (N373)

• Coat with high performance Haldex clutch oil and insert

• Always replace

7 Seal

• In Haldex clutch housing

• Coat with high performance Haldex clutch oil and insert

• Always replace

8 Seal

• For pressure sensor

• Coat with high performance Haldex clutch oil and insert

• Always replace

9 Pressure sensor

• Can be reused when replacing control module

10 Plate spring

• In installation position, marking - arrow - must be located at top and face toward pressure sensor => [ Plate Spring Location ]

Plate Spring Location





• The marking - arrow - is on the convex side of the plate spring - 2 -.

• The convex side with the marking - arrow - faces toward the pressure sensor - 1 -.

• Marking - arrow - faces upward in installation position.
