System Specifications

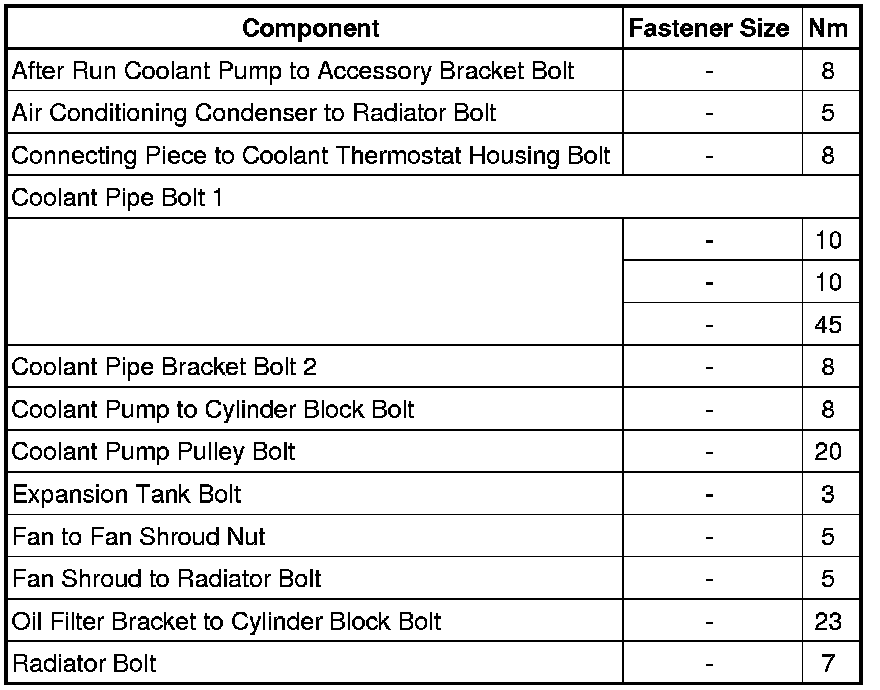

Fastener Tightening Specifications





• 1 For clarification see - items 3, 5 and 8 - in => [ Cooling System Assembly Overview, Engine Side ] Cooling System Assembly Overview, Engine Side.

• 2 For clarification see - item 13 - in => [ Cooling System Assembly Overview, Engine Side ] Cooling System Assembly Overview, Engine Side.

•

Accessory Bracket Bolt Tightening Sequence and Specification





- Tighten the alignment bolts - 2 and 4 - by hand.

- Then tighten bolts - 1, 3 and 5 - by hand.

- Then tighten all bolts uniformly and in a diagonal sequence to 23 Nm.
