Engine Accessory Bracket

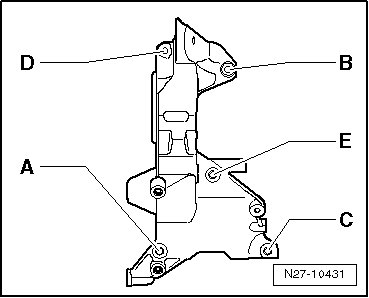

Sub-Assembly Bracket, 3.2L, Tightening Sequence

Tightening sequence for the sub-assembly bracket on the cylinder block, vehicles with A/C system





Procedure

- Position sub-assembly bracket on cylinder block.

• Insert all bolts before tightening to the specification.

- Tighten sub-assembly bracket mounting bolts in the following sequence:

A Cylindrical flange screw, M8 x 28, 23 Nm
B Cylindrical flange screw, M8 x 28, 23 Nm
C Cylindrical flange screw, M8 x 50, 23 Nm
D Cylindrical flange screw, M8 x 50, 23 Nm
E Cylindrical flange screw, M8 x 50, 23 Nm
F Cylindrical flange screw, M8 x 50, 23 Nm
