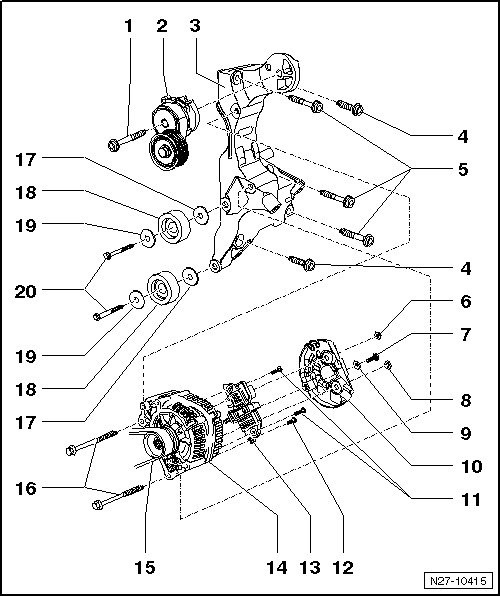

Generator Assembly Overview, 3.2L

Generator Assembly Overview, 3.2L





1 Socket head bolt

• M10 x 85

• 50 Nm

2 Tensioner for ribbed belt

3 Sub-assembly bracket

• for generator and A/C compressor

• Follow the tightening sequence, refer to => [ Sub-Assembly Bracket, 3.2L, Tightening Sequence ] Specifications.

4 Cylinder flange fitted screws

• M8 x 28

• 23 Nm

• Follow the tightening sequence, refer to=> [ Sub-Assembly Bracket, 3.2L, Tightening Sequence ] Specifications.

5 Multi-point socket flange screws

• M8 x 50

• 23 Nm

• Follow the tightening sequence, refer to => [ Sub-Assembly Bracket, 3.2L, Tightening Sequence ] Specifications.

6 Hex head collar nut

• M8

• B+ wire nut to rear side of generator

• 15 Nm

7 Phillips head screw

• M5 x 21

• 4.5 Nm

8 Flat hex nut

• M8

9 Washer

• M5

10 Protective cap

11 Phillips head screws

• M4 x 19

• 2 Nm

12 Phillips head screw

• M4 x 13

• 2 Nm

13 Voltage regulator

• Removing and installing voltage regulator, refer to => [ Voltage Regulator, Valeo ] Voltage Regulator, Valeo

14 Generator

• Generator, removing and installing, refer to => [ Generator, 3.2L ] Generator, 3.2L

• Generator (GEN), checking, refer to => [ Generator, Checking ] Testing and Inspection

• Securing B+ wire to generator, refer to=> [ B+ Cable Mount On Generator ] B+ Cable Mount On Generator

• Generator ribbed belt pulley, removing and installing, refer to => [ Ribbed Belt Pulley with Freewheel, Valeo ] Ribbed Belt Pulley with Freewheel, Valeo

15 Ribbed belt

• Ribbed belt routing, refer to => [ Ribbed Belt Routing, 3.2L ] Ribbed Belt Routing, 3.2L

• Ribbed belt, checking, refer to => [ Ribbed Belt, Checking ] Testing and Inspection

16 Hex head flange screws

• M8 x 90

• 23 Nm

17 Washer

18 Idler pulley

19 Washer

20 Hex head flange screws

• 40 Nm

without illustration

• M5 wire clamp nut to the rear side of the generator - 3.2 Nm
