ECM Connector Heat Shield






ECM Connector Heat Shield

Installation

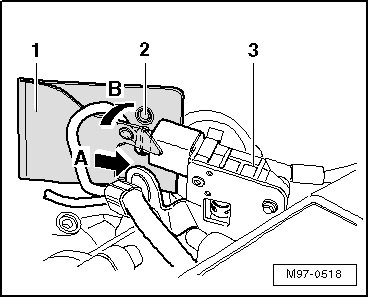

- Slide the heat shield - 1 - onto the component - 3 - in the direction of - arrow A -.

- Turn the knob - 2 - in the direction of - arrow B - to secure.

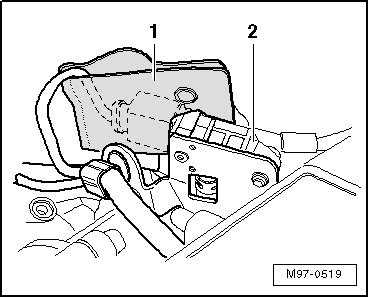

The illustration shows the heat shield - 1 - seated correctly on the component - 2 -,
