Manifold Absolute Pressure Sensor

Manifold Absolute Pressure Sensor

• The manifold absolute pressure sensor is located on the upper intake manifold.

Removing







Before removal, clean the outside area around the sensor in order to prevent dirt and debris from entering the intake manifold.

- Disconnect the negative battery cable.

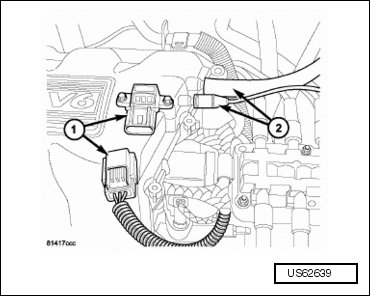

- Disconnect the engine wiring harness electrical connector from the MAP sensor (1).

- Remove the MAP sensor bolts and remove the MAP sensor.

Installing

• Located on the intake manifold is a tab the prevents the MAP sensor from being incorrectly installed. Seat the sensor by turning the sensor until the sensor contacts the tab on the intake manifold.








- Install the MAP sensor and bolts. Tighten the bolts to 1.7 Nm (15 in lbs).

- Connect the engine wiring harness electrical connector to the MAP sensor (1).

- Connect the negative battery cable.
