HID Headlamp Ballast Module
HID Headlamp Ballast Module Removing
-
Remove the headlamp. Refer to => [ Headlamp ]
Headlamp.
-

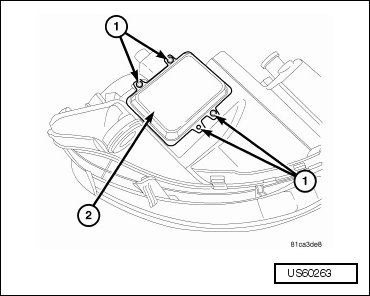

Remove the screws (1) securing the ballast module to the headlamp and remove the module (2).
Installing
-
Place the ballast module (2) onto the headlamp.
-
Install the screws (1) securing the ballast module to the headlamp.
-
Install the headlamp. Refer to => [ Headlamp ]
Headlamp.
