Intake Manifold Specifications

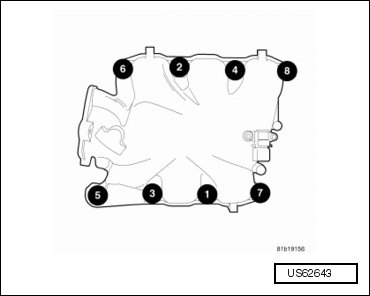

Upper Intake ManifoldInstall and tighten bolts in the sequence shown to 12 Nm (106 in lbs).

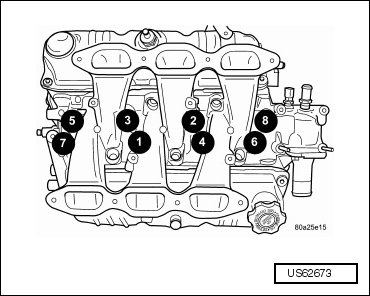

Lower Intake ManifoldTighten the lower intake manifold bolts in the sequence shown to:
Tighten the bolts a first pass to 1 Nm (8.8 in lbs).
Tighten the bolts a second pass to 22 Nm (16 ft lbs).
Tighten the bolts a final pass to 22 Nm (16 ft lbs).
