Intake Manifold Specifications

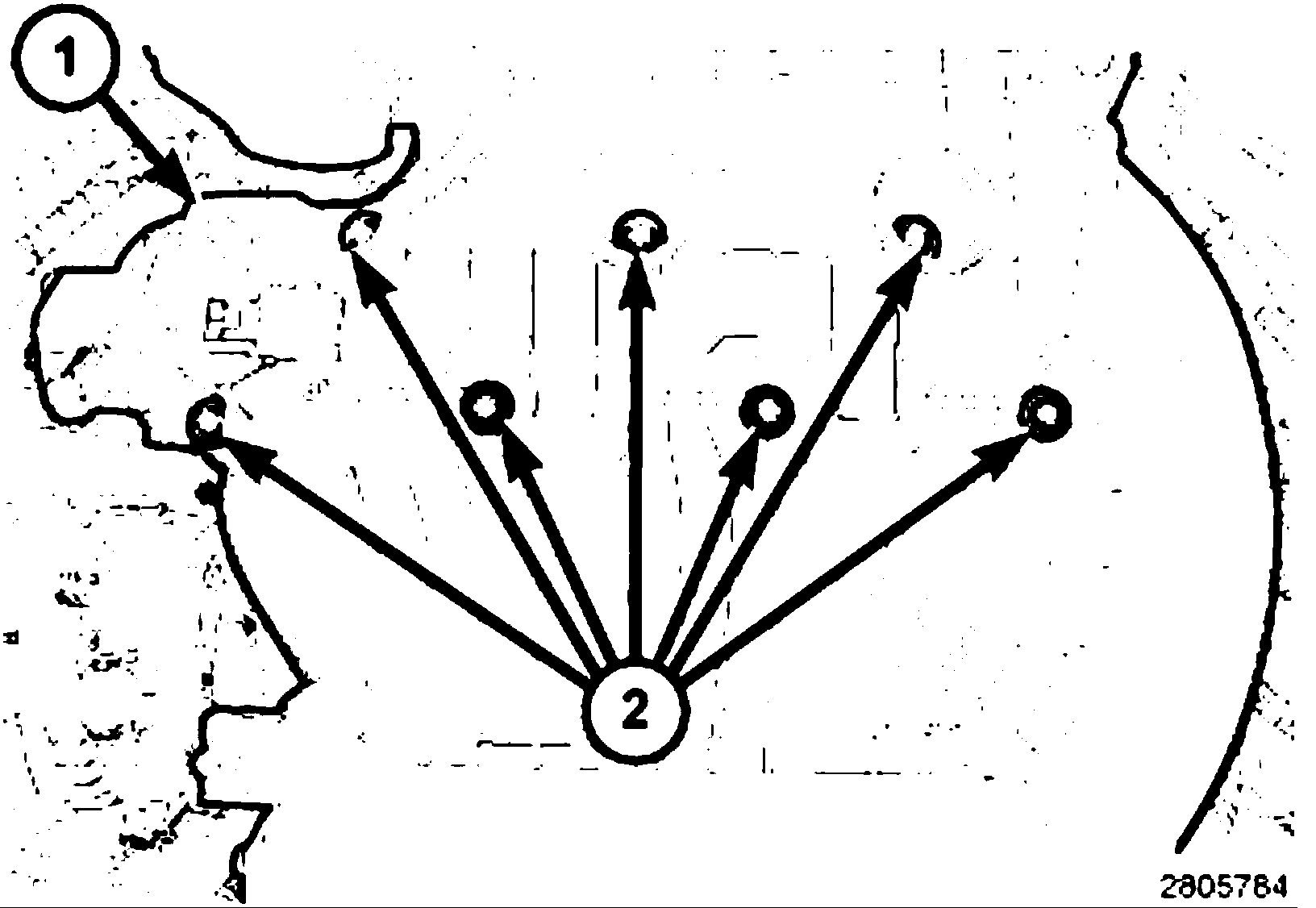

Upper Intake ManifoldInstall two studs (2) to the
intake manifold support brackets (1). Tighten the studs to 12 N.m (105 in. lbs.).
Lower Intake ManifoldInstall the
intake manifold bolts and tighten in the sequence shown to 28 Nm (21 ft lbs).
