Sound Proofing / Insulation: Service and Repair

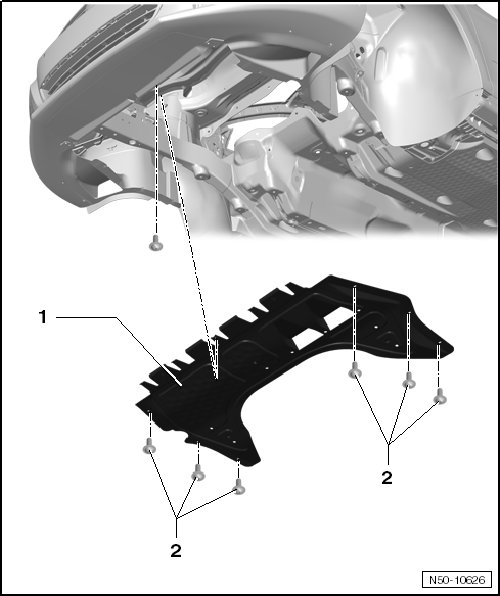

Noise Insulation Assembly Overview •
Slight changes may have to be made to removal and installation procedures, depending upon engine installed in vehicle.
1 Noise Insulation •
Removing:
-
Remove the bolts -
2 -.
-
Remove the noise insulation toward the rear from out of the mounts in the lock carrier.
2 Bolt •
Quantity: 7
•
Tightening specification: 2 Nm
