Diagnostic Mode 09 - Read Vehicle Information

Diagnostic Mode 09 - Read Vehicle Information

Diagnostic Mode 09 makes it possible to access vehicle-specific information from the ECM and the TCM (where applicable).

• Depending on scan tool and protocol used, Diagnostic Mode 09 and the information provided may be referred to by a different name.

Test requirement

• No internal ECM related DTC's stored in memory.

Procedure

- Connect the scan tool.

- Switch the ignition on.

- Select "Mode 09: Vehicle information".

- Select the desired "Test-ID".

- The information requested will be displayed on the scan tool screen.

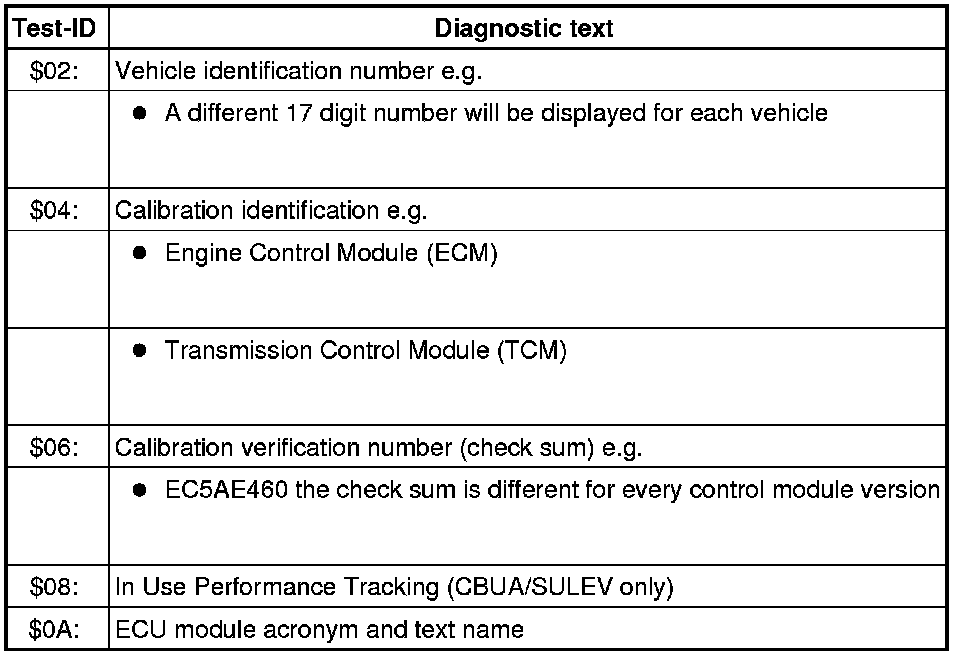

The following table is a numerical list of all"Test-IDs" that may be selected.











- Switch the ignition OFF.
