Intake Air Temperature Sensor






Intake Air Temperature Sensor

Removing






- Disconnect the negative battery.

• Clean any dirt from sensor area prior to removing from the air cleaner housing.

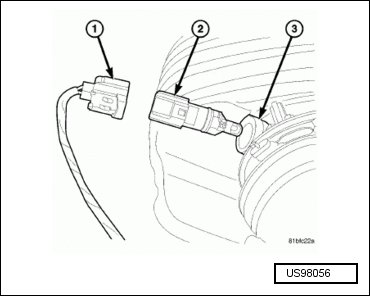

- Disconnect the IAT sensor electrical connector (1).

- Remove the IAT sensor (2) from the air box (3) by turning the sensor 1/4 turn in the counter - clockwise direction.

Installing






- Install the IAT sensor (2) to the air box (3) by turning the sensor 1/4 turn in the clockwise direction.

- Connect the IAT sensor electrical connector (1).

- Connect the negative battery cable.
