Power Seat Control Module: Locations

-Control modules in the vehicle interior

Front seat heating control module -J774-

Component Location:

On the left front seat frame -2- .

Pin Arrangements:

A - Front seat heating control module -J774-
Pin Connectors:

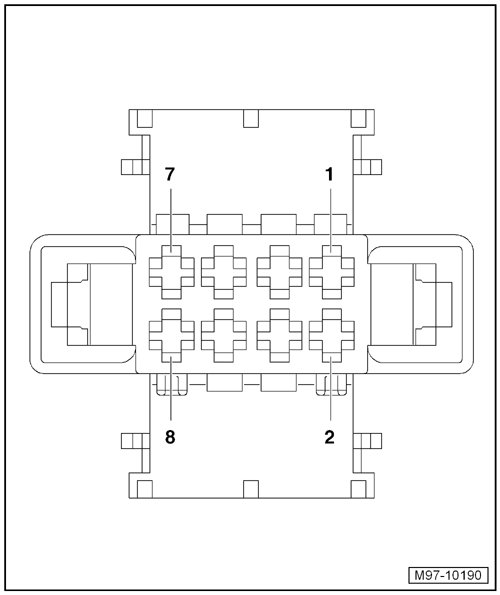

B - 8-pin connector -T8v- inside the wiring harness

1 - Front passenger seat heating element -Z8- (1)

2 - Vehicle electrical system control module -J519- (T73a/36)

3 - Positive connection (30as) in the heated seats wiring harness -O4-

4 - (Seat heating) connection in the main wiring harness -B431-

5 - Driver seat heating element -Z6-

6 - Positive connection (30as) in the heated seats wiring harness -O4-

7 - Ground connection 1 in the heated seats wiring harness -96-

8 - Connection 5 in the driver seat wiring harness -M45-
