Flush Bonded Windows, Rear Window Assembly Overview

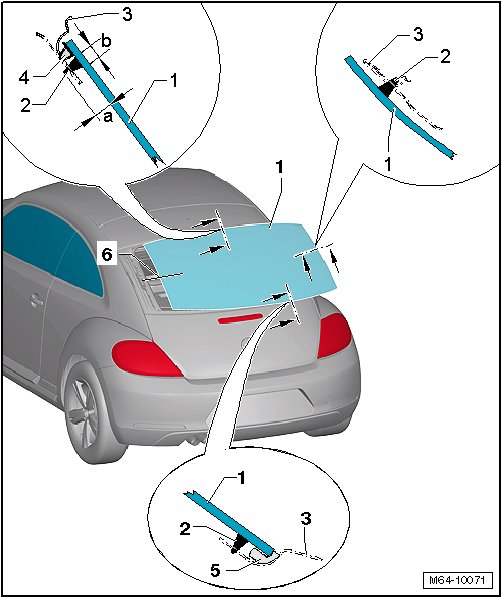

Rear Window Assembly Overview






1 Rear Window

• Removing, refer to => [ Undamaged Rear Window, Removing ] Undamaged Rear Window, Removing

• Installing => [ Rear Window, Installing ] Rear Window, Installing

2 PUR adhesive sealant

• Bead diameter: - Width b - = 6.5 mm - Height a - Height = 10 mm (including the precoating, residual material on the window and the window flange)

• Minimum curing time => [ Minimum Curing Time ] Minimum Curing Time

3 Body flange

4 Spacer

5 Seal

• is a component of the rear window

6 Adhesive bead end

• Apply the adhesive bead in this area
