Driver door control module -J386-







-Control modules in the vehicle interior

Driver door control module -J386-


Component Location:





On front left door inner part -arrow- .

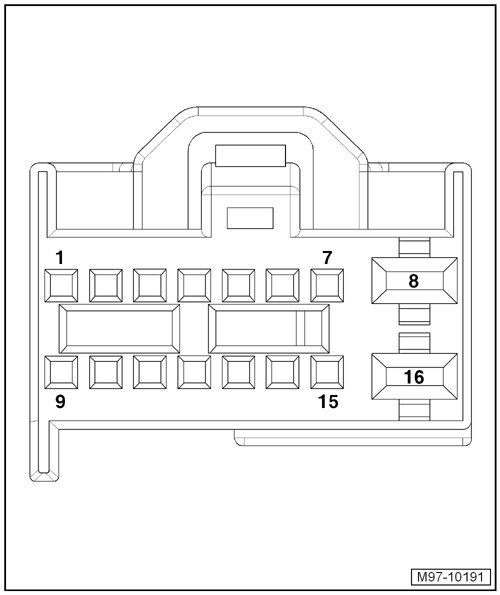

Pin Arrangements:







A - Driver door control module -J386-
Connector:

B - 16-pin connector -T16c- inside the wiring harness

1 - Not used

2 - Not used

3 - Not used

4 - Right front power window switch in driver door -E81- (T4c/4)

5 - (LIN bus) connection 1 in the main wiring harness -B528-

6 - Left front power window switch -E40- (T4c/3)

7 - Right front power window switch in driver door -E81- (T4c/4)

8 - Ground connection in the driver door wiring harness -205-

9 - Not used

10 - Not used

11 - Not used

12 - Fold-in mirror switch -E263- (T10o/8)

13 - Driver window lowering microswitch -E621- (2)

14 - Driver exterior rearview mirror folding motor -V121- (2)

15 - Driver exterior rearview mirror folding motor -V121- (1)

16 - Fuse 45 on fuse panel C -SC45-
