Evaporative Emissions System: Service and Repair

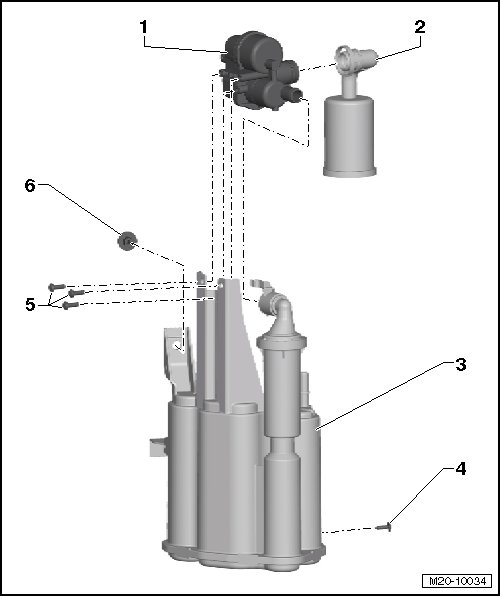

EVAP System Component Overview
^ 1 - Leak detection Pump (V144)
^ Installed location: Under the right rear wheel housing liner.
^ 2 - Air Filter Housing
^ Complete with connecting line and connection.
^ 3 - Evaporative Emission (EVAP) Canister
^ Installed location: Under the right rear wheel housing liner.
^ Removing and Installing, refer to => [EVAP Canister]. Service and Repair
^ 4 - Screw
^ 1.8 Nm
^ 5 - Screw
^ 1.8 Nm
^ Leak detection pump to EVAP canister.
^ 6 - Nut
^ 8 Nm
