Windshield Washer System Overview

Windshield Washer System Overview

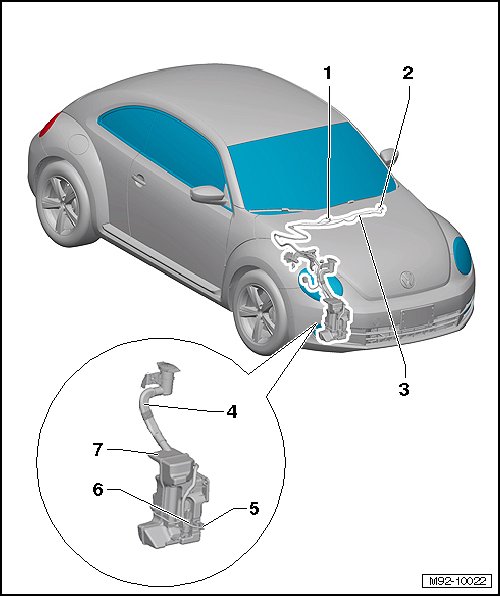

1 Right Windshield Washer Spray Nozzle

• Removing and installing, refer to => [ Spray Nozzles ] Service and Repair.

• Adjusting => [ Spray Nozzles, Adjusting ] Adjustments.

2 Left Windshield Washer Spray Nozzle

• Removing and installing, refer to => [ Spray Nozzles ] Service and Repair.

• Adjusting, refer to => [ Spray Nozzles, Adjusting ] Adjustments.

3 Hose

• Hose repair, refer to => [ Windshield Washer Fluid Hoses, Servicing ].

4 Filler Tube Windshield Washer Fluid Reservoir

• Removing and installing, refer to => [ Washer Fluid Reservoir ] Service and Repair.

5 Windshield Washer Fluid Level Sensor (G33)

• Removing and installing, refer to => [ Washer Fluid Level Sensor (G33) ] Service and Repair.

6 Windshield Washer Pump (V5)

• Removing and installing, refer to => [ Washer Pump (V5) ] Service and Repair.

7 Windshield Washer Fluid Reservoir

• Removing and installing, refer to => [ Washer Fluid Reservoir ] Service and Repair.

No Illustration

• Washer fluid reservoir to body: 8 Nm
