Map Light Bulb: Service and Repair

Left Interior Lamp (W16)/Right Interior Lamp (W17), Bulbs

Removal

- Remove the interior lamp. Refer to=> [ Interior Lamp ] Interior Lamp.

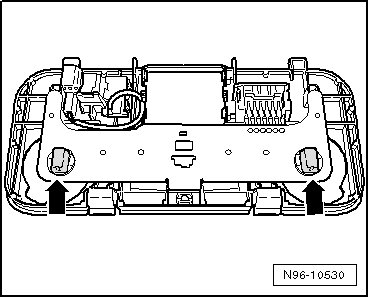

- Rotate the lamp socket - arrows - of the malfunctioning reading lamp 90° to the left.

- Remove the socket with the bulb from the reading lamp.

- Carefully pull the wedge-base bulb straight out of the socket.

- Interior lamp: Bulb 12V, 5W

Installation

Install in reverse order of removal.
