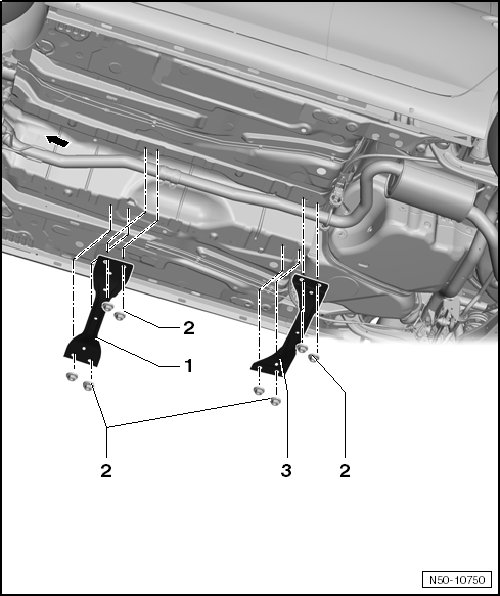

Tunnel Bridge Overview
Tunnel Bridge Overview •
-
Arrow - points in direction of travel.
1 Front Tunnel Bridge •
Removing:
-
Remove the nuts -
2 - (2 on each side).
2 Nut •
Tightening specification: 20 Nm
•
Quantity: 4 per tunnel bridge
3 Rear Tunnel Bridge •
Removing:
-
Remove the nuts -
2 - (2 on each side).
