System Specifications

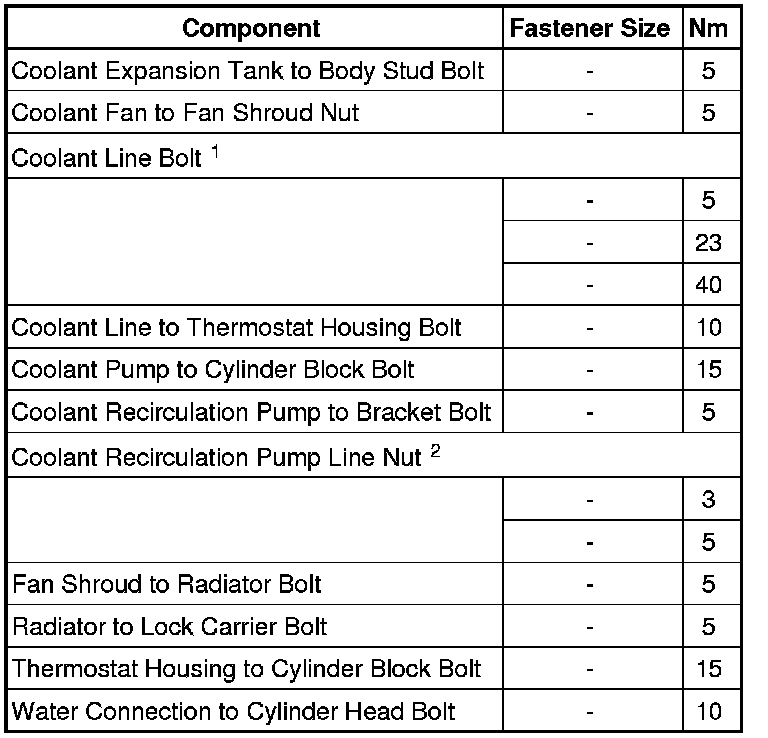

Fastener Tightening Specifications •
1 For fastener clarification, refer to -
items 1, 2 and 17 - in the => [
Cooling System Components Overview, Engine Side ]
Cooling System Components Overview, Engine Side •
2 For fastener clarification, refer to -
items 1 and 10 - in the => [ Coolant Recirculation Pump Overview ]
Service and Repair
