Cylinder Head Assembly
Tighten cylinder head in tightening sequence as follows:

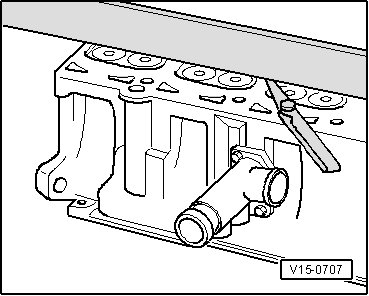

Checking cylinder head for distortion
Permissible distortion: 0.1 mm
Minimum distance of the linear surface: 100 mm
Cylinder head - sealing surface, resurfacing

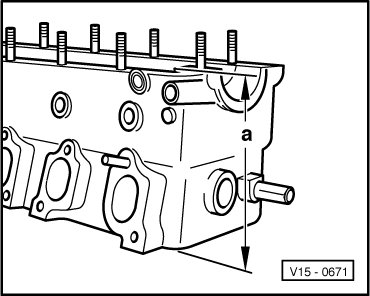

Reworking dimension, cylinder head:
a - = minimum 132.6 mm
Camshaft Bearing Cap
Bearing Cap 20 Nm
Intake Manifold Torque & Sequence Specifications
Exhaust Manifold Torque & Sequence Specifications
Camshaft Gear/Sprocket Torque Specifications
